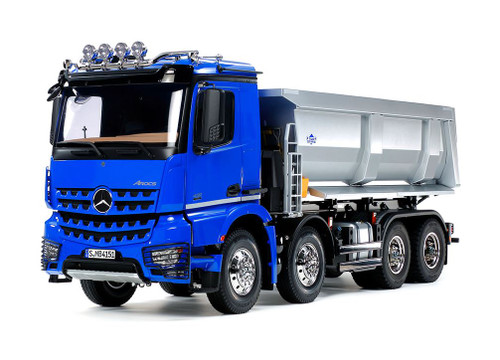

Tamiya 1/14 Mercedes-Benz Arocs 4151 8x4 Tipper RC Truck
- SKU:
- 56366
- Brand:
- Tamiya
- Availability:
- Arriving 20th Dec
One HOT Tip!
The Arocs series is a line of heavy-duty models introduced in 2013 by the world’s leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the Arocs 4151 8x4 dump truck (gross vehicle weight: 41t), which runs on a 12.8-liter turbocharged inline-6 engine capable of 510hp. It features a highly detailed body with distinctive bucket tooth front grille available as a separate part.
The roof has a front bar with light pods, and the inside of the cab is also depicted. Behind the cab, a realistic one-piece resin bed is reinforced with a metal frame, while the ladder frame chassis features aluminum side channels with resin cross members. The two front axles are steered via a single servo, and power from the front-mounted TR Mighty Tuned Motor (35T) is delivered to rear axles via propeller shaft, with a built-in differential gear on each rear axle for smooth cornering. Its highly-realistic suspension utilizes metal leaf springs and friction dampers. Tandem die-cast front axles have individual leaf springs, and reinforced resin rear axles are a trunnion design.
The assembly type 3-speed transmission allows gear changes via a separately available 4-channel transmitter.
Get Tipping!
This separately sold set features parts to enable control of Tamiya 1/14 R/C tipper truck beds via separately sold transmitter. It includes geared motor, spindle shaft, link pieces and ACU-01 unit, and can raise beds carrying loads of up to 10kg. A clutch is installed to help prevent damage due to over-loading.
Key Features:
- 1/14 scale R/C model assembly kit
- The Arocs 4151 form is recreated with an injection molded body, including depictions of cab rails, intake duct and other details
- Separate parts recreate side mirrors and visor, etc
- Both front axles are steered, via a single servo. Wheels turn realistically at slightly different angles
- The Tamiya 4-axle chassis has a tough ladder frame with aluminum side channels and plastic cross members
- Features a brand-new truck bed section comprised of metal subframe for superb durability
- Install the optional Actuator Set (TAM56545 - not included) for realistic truck bed motion
- TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the truck bed
- The battery case is located over the second axle, which allows access even when there are loads in the bed
- The roof features a depiction of light pods on the visor, which can be fitted with LEDs for a realistic finish
- 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter
- Metal leaf spring dampers with built-in coil springs provide durable suspension
- Use with separately-sold MFC-03 (TAM56523) or MFC-01 (TAM56511) for realistic lights and sounds
What's In The Box?
- 1 x Tamiya 1/14 MB ARCOS 3151 Assembly Truck Kit
- 1 x 35T Specially tuned brushed motor
- 1 x Decal Sheet
- 1 x Instruction Manual and Assembly instructions
- 1 x ABS Plastic Body components and cab
Required for Operation (Not Included)
- 4-Channel Radio (4YWD Recommended)
- 2 servos
- ESC (MFC-01 or MFC-03 Unit recommended)
- 7.2volt battery with compatible charger
- Tamiya TS & Acrylic-Lacquer Bottle Paints
- Assembly tools

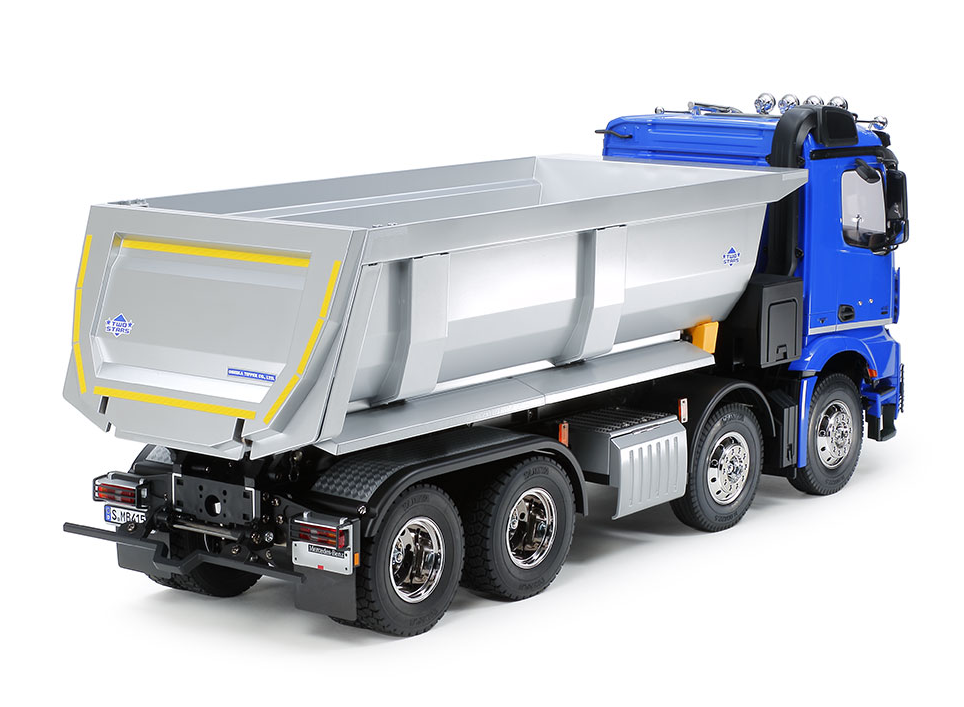

The single-piece ABS plastic bed is combined with an aluminum frame to ensure plenty of durability as well as realism.
frame to ensure plenty of durability as well as realism.

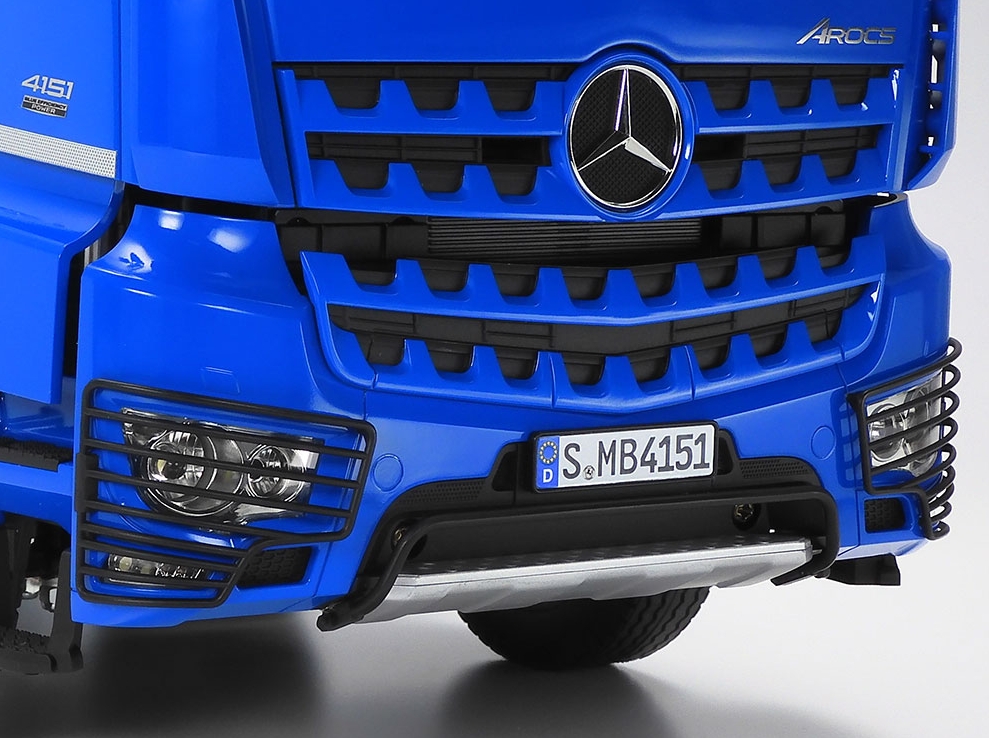

The distinctive Arocs front grille is depicted, using separate parts, while the emblem is recreated by a plated component.

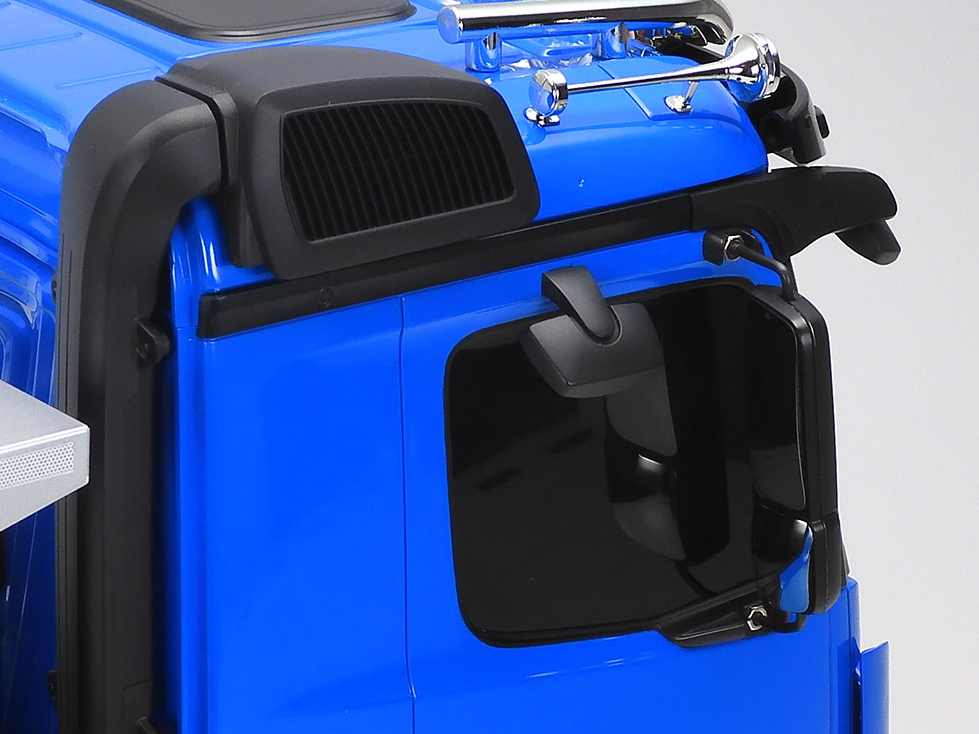

Side mirror surfaces are also metal plated parts, and accurately capture the curved surface. The big duct is also rereated.

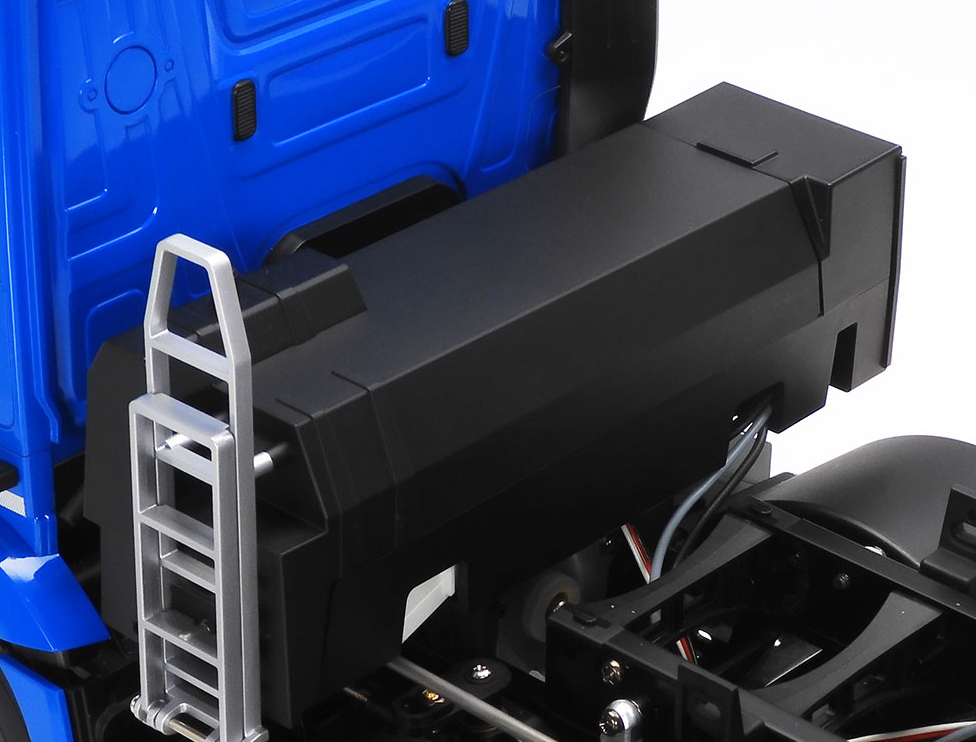

The model's battery pack is contained in a dedicated case over the second axle, allowing battery changes even when the bed is loaded.

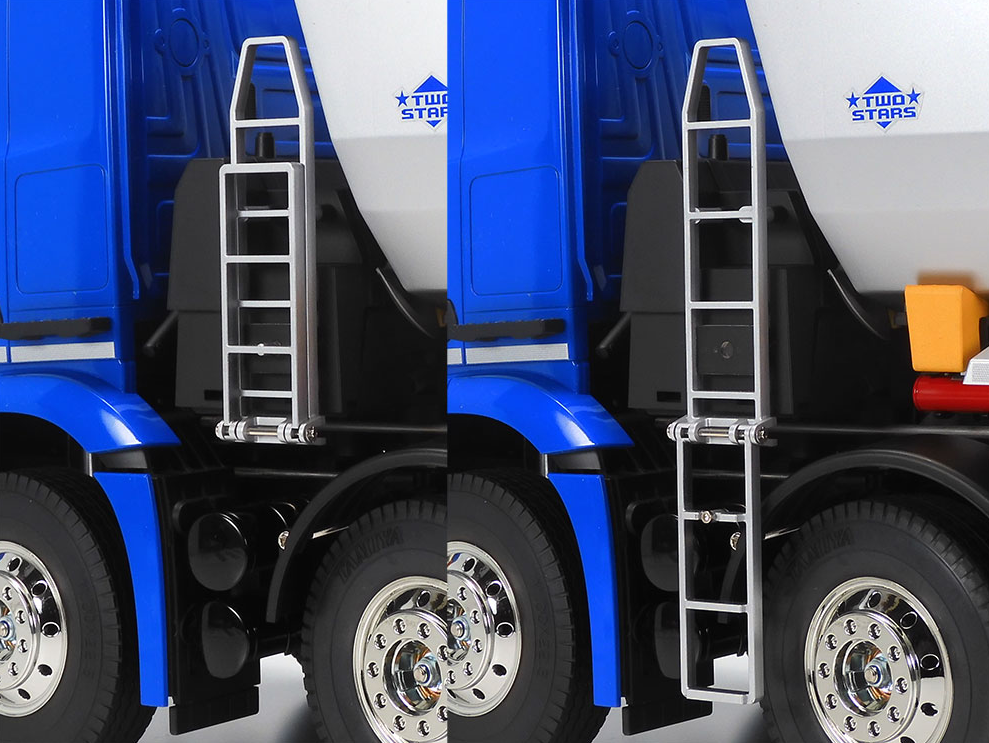

There are even display options available on this model, such as the choice of depicting cab rear ladders deployed or stowed.
The trunnion design suspension is inspired by full-size trucks, and features special reinforced plastic axles plus metal leaf springs.
A close-up on a rear fender, which covers both axles and features a flat top with anti-slip markings recreated by sticker.
A precision geared motor turns the spindle shaft, lengthening and shortening the metal cylinder.

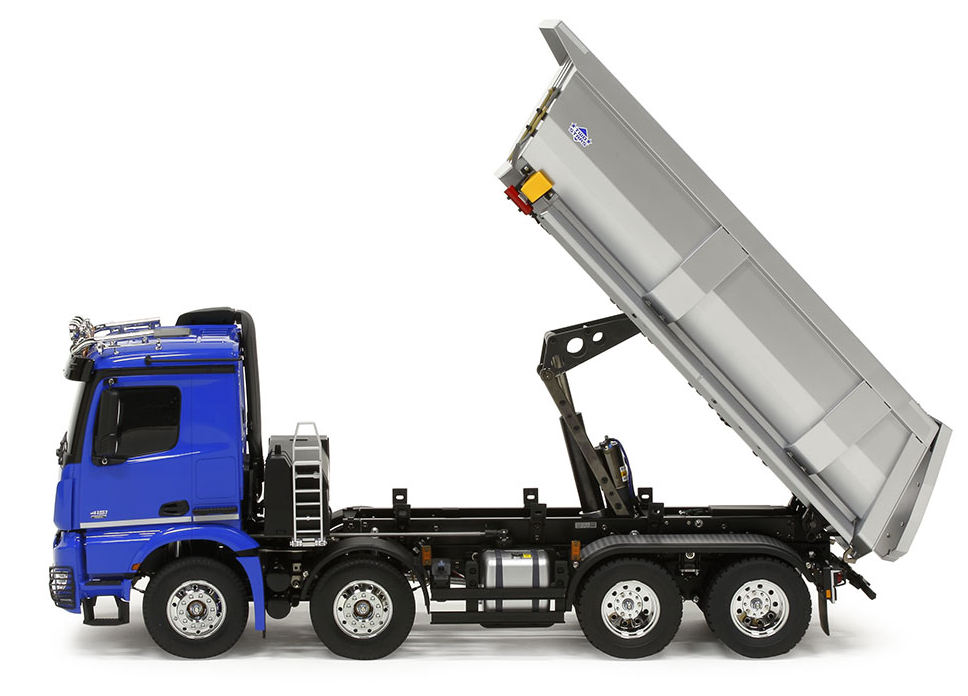

The model can run with and lift loads of up 10 kilograms, with bed motion controllable via transmitter.
Technical Specifications:
Length: 667mm, Width: 196mm, Height: 268mm,
Weight (without optional parts): Approx. 5.1kg
Wheelbase: 133mm + 215mm + 103mm
Tread: 156mm (front), 138mm (rear, double tire)
Chassis: aluminum & polycarbonate resin ladder frame
Front/rear leaf spring rigid suspension
Caster angle (front/rear): 0°/0°
Camber angle (front/rear): 0°
Toe angle: 0°(front & rear)
Aluminum dummy dampers (front & rear)
Dual rear axle drive ♦3-gear transmission (gear shifting operated via transmitter)
Gear ratio: (1st) 32.49:1, (2nd) 17.76:1, (3rd) 10.66:1
3-bevel differential gears
TR Mighty Tuned Motor (35T)
Tire width/diameter: 22mm/83mm (front); 22mm/84mm (rear)
