Tamiya 1/10 Mitsubishi Pajero CW-01 2WD Off-Road Kit
- SKU:
- 58727
- Brand:
- Tamiya
This 1/10 scale R/C assembly kit recreates the Mitsubishi Pajero on the CW-01 chassis. After the announcement of its concept car at the Tokyo Motor Show in 1973, the Mitsubishi Pajero was one of the most recognizable Mitsubishi 4WD cars, sold from 1982 to 2021 through a fourth model change. At the 1983 Paris-Dakar Rally, this car took a championship in an unmodified production vehicle division, and after that, showed off its great performance around the world. This kit recreates the first-generation model which was produced from 1982 to 1990. Based upon Item 58499 1/10 R/C Mitsubishi Montero Wheelie, tires are changed from massive 115mm big ones to rock block ones, and the kit features the CVA II short oil dampers.
An Old Favorite
Known in Japan as the Pajero, this venerable vehicle has been a worldwide hit since its debut in 1982, and here its body is given a comical reworking for use on this R/C model assembly kit. The boxy body is molded in durable and detailed plastic, with delightful details such as the cabin, bumpers and big over fenders. At the rear in the cargo space are a roll bar with spotlights, a tool case and more. Stickers are included to decorate the model.
The CW-01 Chassis
The 2WD CW-01 chassis is built around a tough box frame, with front swing axle and rear rolling rigid suspension setups and CVA oil dampers, plus white 5-spoke wheels and large-diameter tires for a dynamic off-road drive. Sealed to keep out dust and dirt, the gearbox contains a differential for smooth cornering, and the rear is fitted with a wheelie bar - give it some throttle for wheels-in-the-air action!
Key Features:
- 1/10 scale R/C model assembly kit. Length: 385mm, width: 240mm, height: 255mm. Wheelbase: 207mm.
- ABS plastic body.
- CVA II short oil dampers included.
- 5-spoke wheels are paired with rock block tires.
- Included stickers depict the road car design.
- Includes 540 motor
What's In The Box?
- Tamiya 1/10 CW-01 Mitsubishi Pajero Assembly Kitset
- Assembly Manual
- Decal Sheet
Required for Operation (Not Included)
- 2-channel radio & Receiver
- Steering servo
- Electronic Speed Controller
- 7.2-7.4volt battery pack Compatible charger
- Tamiya PS paint
- Tool

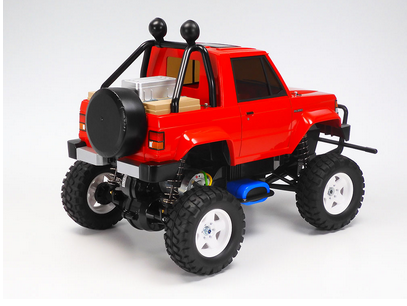

With spotlights, roll bar and spare tire, there is plenty to grab your eye at the rear.

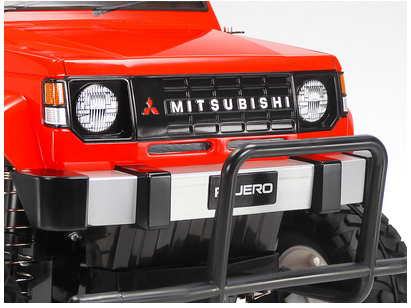

A close-up on the front of the model. The Mitsubishi emblem is a sticker.

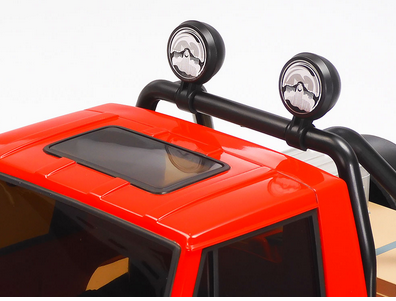

Take a closer glance at the roll bar, plus the sun roof atop the cab.

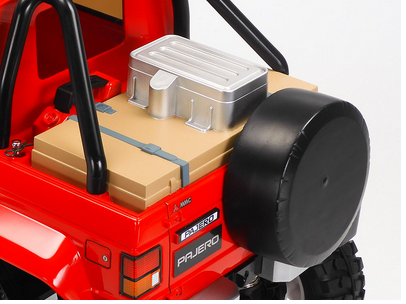

The spare tire can be put on the back, or on top of the tool box.

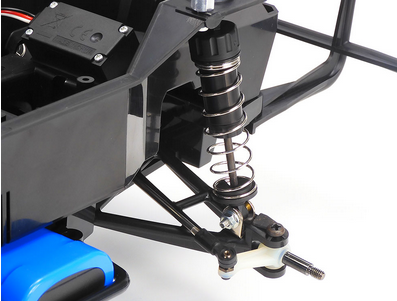

The front suspension using a swing axle setup. The servo is installed at an angle and moves the 2-piece linkage.

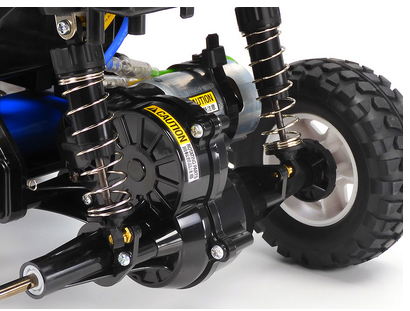

At the rear is a rolling rigid setup with CVA oil dampers and a differential inside the sealed gearbox.

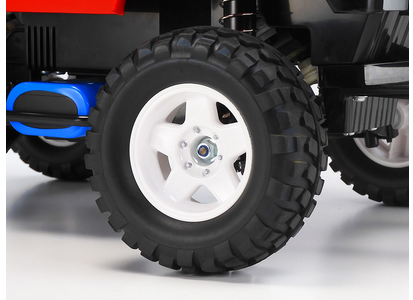

White 5-spoke wheels are paired with 94mm rock block tires perfect for a cross country drive.
Technical Specifications:
Length: 385mm, width: 240mm, height: 255mm
Wheelbase: 207mm
Tire width/diameter: 36/94mm (front and rear)
Tread: 195mm (front and rear)
Box type chassis frame
Rear-wheel drive
3-bevel differential
2-piece steering tie-rod
Suspension: front swing axle, rear rolling rigid
CVA oil dampers
Gear ratio = 14.7:1
Type 540 motor
Note: Electronic speed controller (ESC) is sold separately.
