Tamiya 1/10 Fiat Abarth 1000 TCR Berlina Corse 2WD MB-01 Kit
- SKU:
- 58721
- Brand:
- Tamiya
Great Things Come in Small Packages
The Fiat Abarth 1000 TCR Berlina Corse became European Touring Car Championship class champion in 1968 and 1969. Based upon the compact 2-door Fiat 600, it was tuned by Abarth for races. The muscular form had front and rear over fenders, a large radiator cover integrated with the front bumper, and horizontally-opened engine hood. A 982cc inline-4 engine capable of over 110hp underpinned its powerful performance. This R/C model assembly kit depicts the small but mighty silhouette of the car elegantly using a polycarbonate body and plenty of separately molded plastic parts, the whole package being based upon the new MB-01 chassis.
The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
Key Features:
- Buttery smooth 2WD MB-01 drivetrain
- Stickers and window masking for use in the body painting process
- Adaptive chassis allows for front motor FWD and rear motor RWD
- The body is made of lightweight and rigid polycarbonate
- Fully independent double wishbone suspension
- Low maintenance Friction style shocks
- Reliable HobbyWing THW 1060 Brushed ESC
- Strong Torque tuned Mabuchi RS-540 brushed motor
- High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)
- Buttery smooth grease filled differentials
What's In The Box?
- Tamiya 1970 Fiat Abarth 1000 TCR Assembly Kit
- ESC with Tamiya Connector
- Torque tuned 540 brushed motor
- Polycarbonate Body
- Decal Sheet
- Instruction manual
Required for Operation (Not Included)
- 2‑channel radio system with receiver (steering + throttle)
- Standard-size steering servo
- 7.2 V–7.4 V battery pack (e.g. NiMH or Li-ion)
- Battery charger compatible with your battery type
Take a look at the model from another angle, showing off the small yet perfectly formed Fiat Abarth 1000 TCR Berlina Corse.
Highlights on the front include a depiction of the chunky radiator/oil cooler, and metal-plated headlight rims.

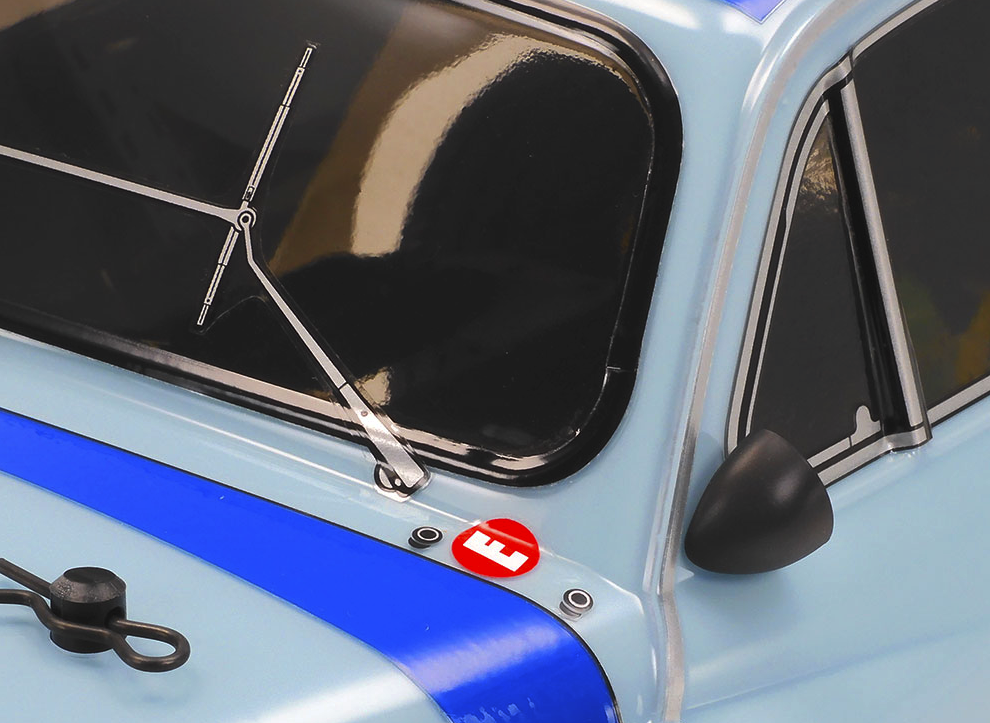

Separately molded parts are used for the side mirrors, while windshield wipers are a sticker.

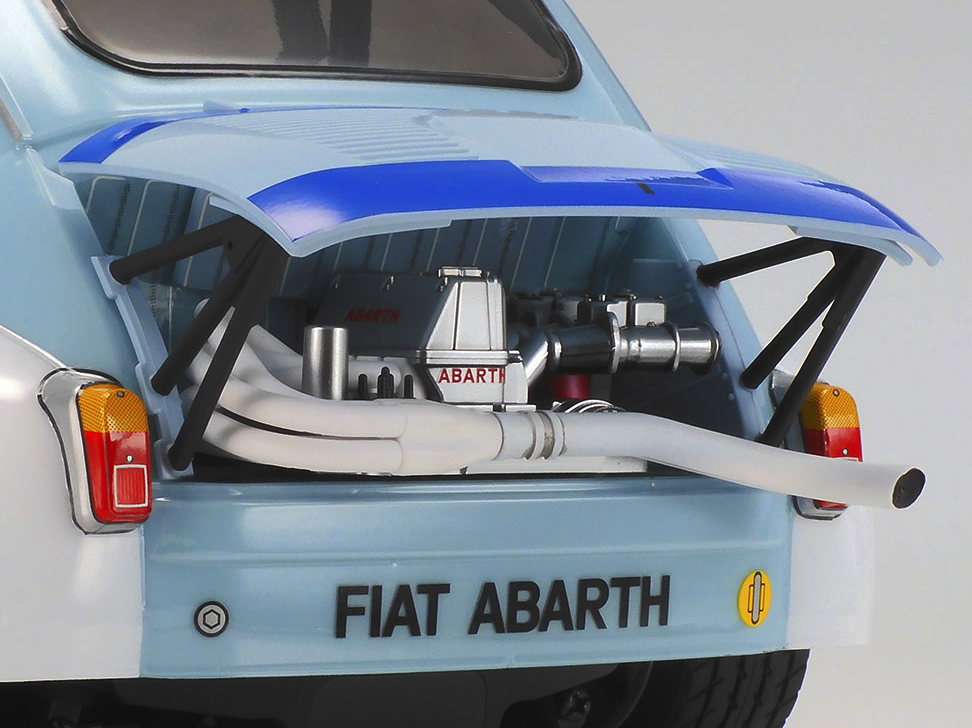

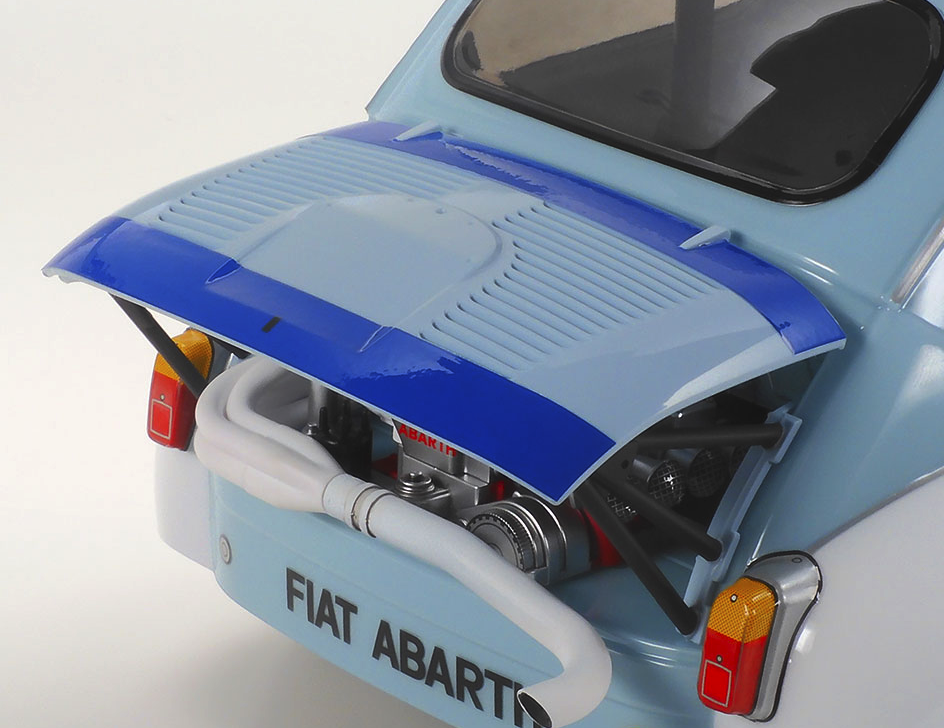

A rather unusual sight at the rear: the opened hood, which is also a separately molded part with its props.
The model also depicts parts of the engine for a super realistic look.

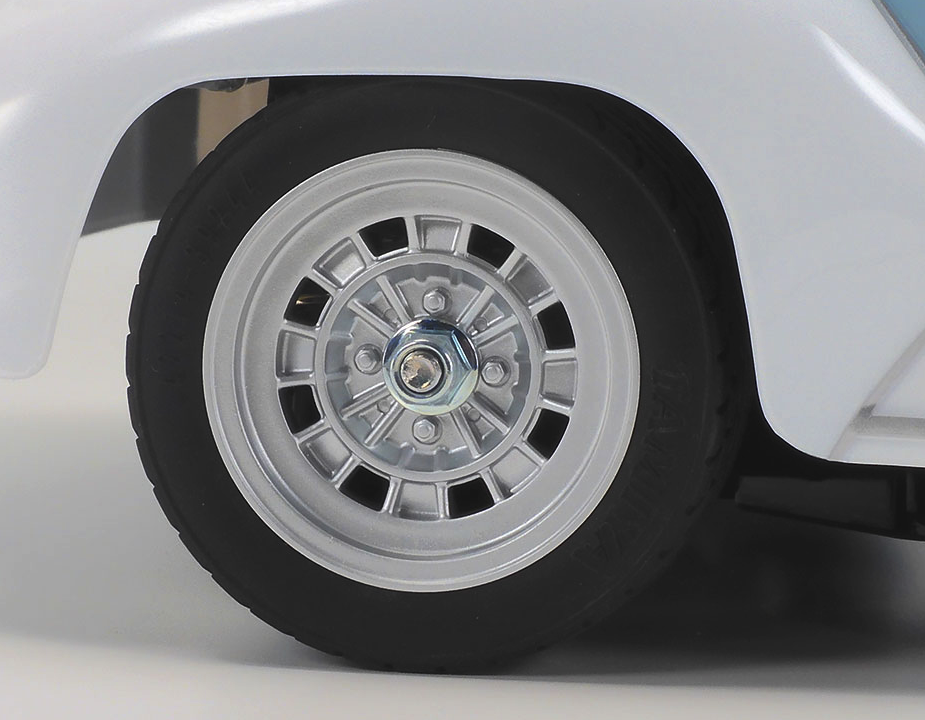

Silver color wheels are paired with front 55mm and 60mm radial rear tires.

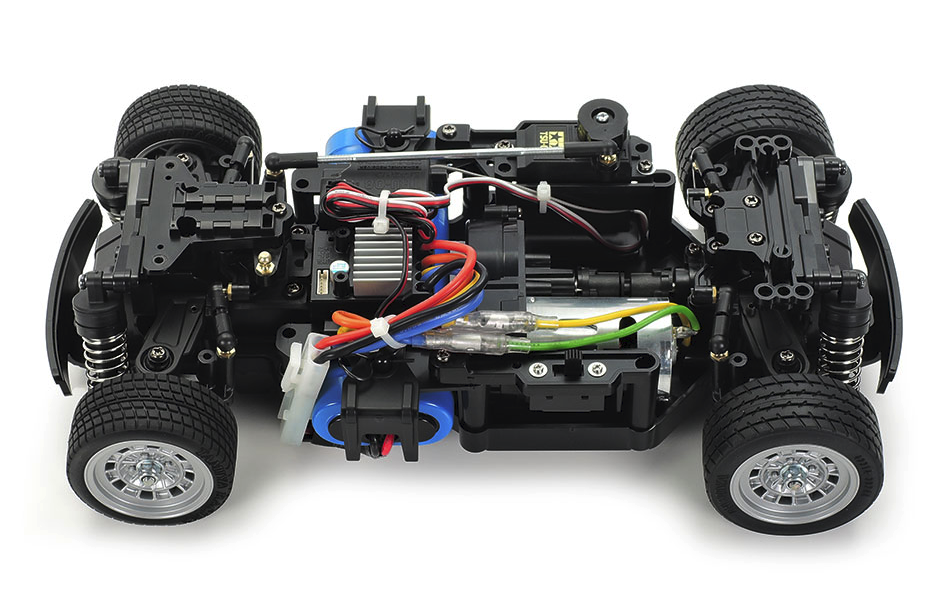

The compact MB-01 chassis. For this model, it is assembled with a short wheelbase: 210mm.

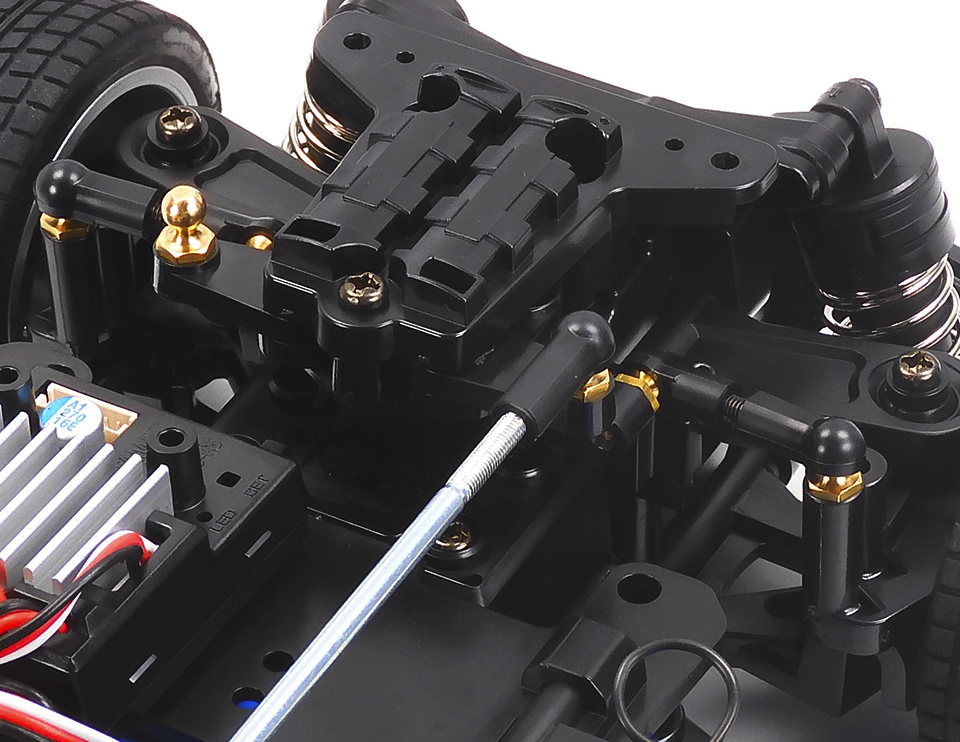

The servo is installed in the right-rear of the model, and moves the steering linkage via a link rod

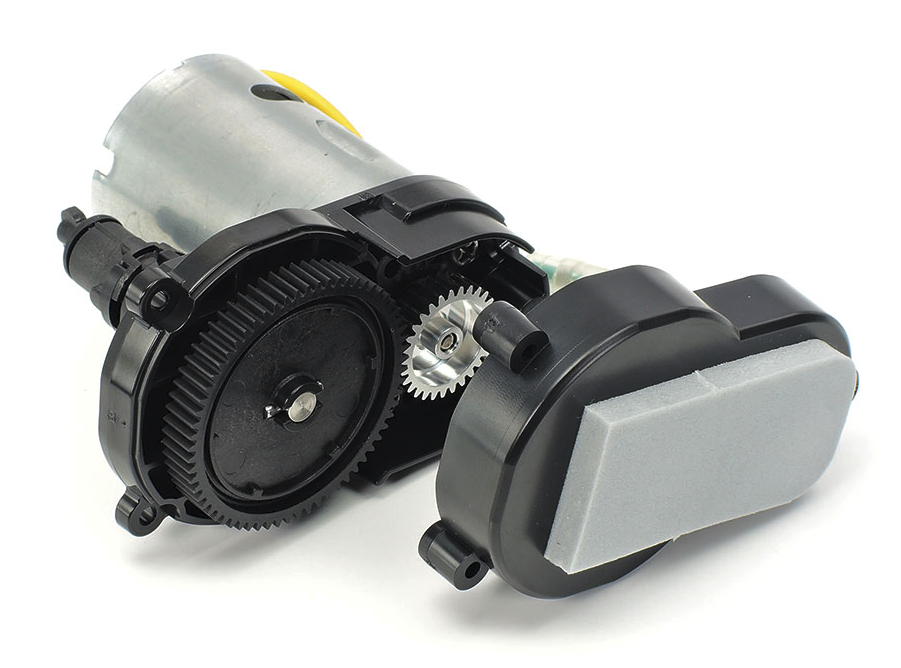

The motor mount is assembled as a unit, and secured to the chassis using two screws.
Technical Specifications:
Length: 374mm
Wwidth: 168mm
Height: 140mm
Wheelbase: 210mm (Short)
Tread: 140mm (front & rear)
Tire width/diameter: 25/55mm (front), 25/59mm (rear)
Bathtub type chassis
Midship motor, rear-wheel drive
4-bevel differential gear
3-piece steering tie-rod
4-wheel double wishbone suspension
Friction dampers ★Gear ratio = 5.83:1 (using kit 29T pinion)
Type 540 motor
