Spektrum Avian 80Amp 3S-8S Smart Brushless ESC

Spektrum Avian 80Amp 3S-8S Smart Brushless ESC

(No reviews yet) Write a Review
SKU:
SPMXAE1080
Brand:
$229.00 inc GST

Buy With Confidence.

Payment Options:

Smart Technology — More connected for more confidence and control

Spektrum™ Smart Technology is about offering a higher connection to your hobby. It's an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever before. Smart technology ensures that all of your model's electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component's status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.

Spektrum radios with Smart features can download firmware updates instantly using Wi-Fi and can swap setups with compatible radios via Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and communicates your charging preferences automatically to Smart chargers — just connect your pack and press "Start." Smart IC™ series connectors include an innovative data wire that transfers information easily between Smart components with a single connection. Finally, Smart ESCs not only deliver power but also eliminate the hassles from running telemetry. The days of installing and connecting multiple wires, sensors, modules and links are over.

KEY FEATURES:

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Throttle stick programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case
  • Heat dissipating design
  • Tabs included for a hard mount
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Dual BEC power connectors
  • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty
What's in the Box?
  • (1) Spektrum™ Avian™ Smart ESC
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual
Needed to Complete (Not Included)
  • Spektrum™ Aircraft Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter

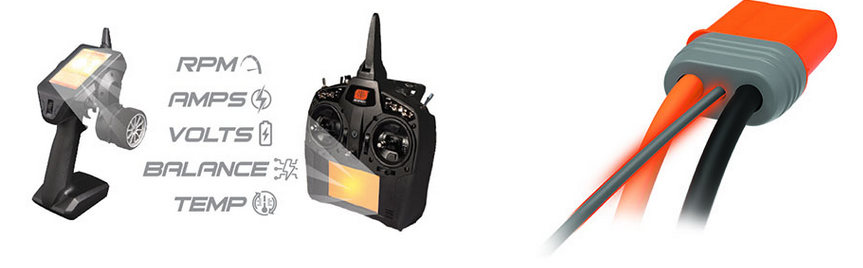

One-Wire Telemetry
No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

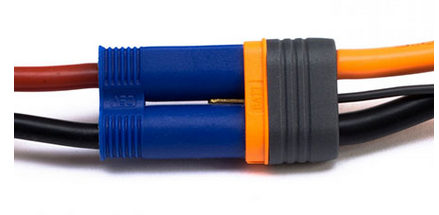

EC3™/EC5™ Backwards Compatible
Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3™ and EC5™ connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.

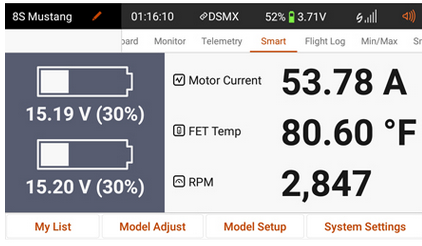

Smart Technology Battery Data
When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

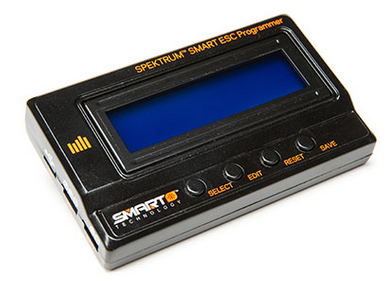

Multiple Programming Options
Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.

Fast, Powerful M4 Processor
The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



TECHNICAL SPECIFICATIONS:

Brakes Yes
Programmable Yes
Programming Options Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Adjustable Timing Yes
Connector Type IC5
ESC Type Brushless
Product Length 2.8 (70mm)
Forward Yes
Reverse Yes
Application Air
Auto Cutoff Yes
BEC Continous Current 8
Low-Voltage Cutoff Programmable Yes
Product Weight 5.1oz (145g)
Maximum Continuous Current 80A
Maximum Burst Current 100A
Amperage 80A - 99A
BEC Type Switch
Battery Input Lead IC5
Max Input Voltage 29.6V
Product Width 1.4" (35mm)
Technology Smart
BEC Maximum Burst Current 25A
BEC Voltage 6V/7.4V/8.4V adjustable
Input Voltage 3S - 8S LiPo
Motor Output Lead 4mm
Part Type Electronics
Product Application Air
Product Height 1.3" (33mm)
BEC Yes
