O.S Max 120AX Ringed 1.20 Airplane Glow Engine with Muffler

O.S Max 120AX Ringed 1.20 Airplane Glow Engine with Muffler

(No reviews yet) Write a Review
SKU:
19210M
Brand:
Gift wrapping:
Options available
$599.00 inc GST

Buy With Confidence.

Payment Options:

Perfect for 3D, precision and sport flying!

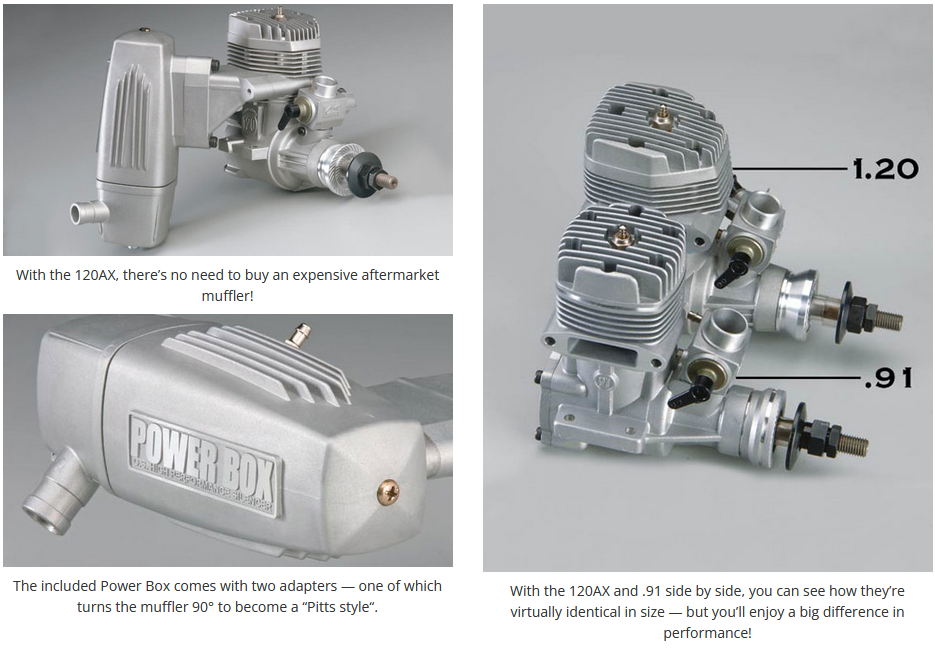

Admit it: if you could ratchet up horsepower without having to increase the mounting space, you’d probably jump at the chance. Well, here it is. The 120AX boasts 25% more displacement than a .91 (think of the bigger props you can swing!) — and bolts into the same space, with almost no extra weight. And that’s not all. The 120AX’s innovative Power Box muffler offers mounting versatility that translates into value. Plus, the angled heat sink head not only looks sharp, it adds more surface area, for better cooling. Here’s a golden opportunity to boost your airplane's flying capabilities — with almost no modification!

Key Features:

  • Ideal for 3D, Precision and Sport flying
  • Mounting Application: Mounts in same space as the .91FX (actual mounting dimensions vary slightly
  • Internal Construction: Steel piston ring and liner, aluminum piston
  • Muffler: E-5020 "Power Box" with extension and 90° adapters
  • Carburetor: 70D with rearward angled needle valve for safety
  • Glowplug: O.S. #8 supplied with engine, A5 (OSMG2693) will also work
  • Warranty: Two-year limited

What's In The Box?

  • O.S. Max Two-Stroke 1.20AX Ringed Engine with E-5020 Power Box Muffler
  • #8 glow plug
  • Mmuffler adapter
  • Prop washer and lock nut
  • Nneedle valve extension cable
  • Instruction manual and decal sheet
  • Ttwo muffler screws
  • Two muffler extension bolts
  • Two long muffler bolts.

Required for Operation (Not Included)

  • Fuel: Two-Stroke with 18% lubricant and 5-20% nitromethane
  • Propeller: 15x10-12 or 16x8-10
  • Field Equipment: Glow starter, fuel filter, fuel pump, fuel tubing.

Technical Specifications:

Manufacturer # 19210
Bore 1.197" (30 mm)
Carb Type Rotary
Crankshaft Threads UNF5/16-24
Crankshaft Type Threaded
Cylinders Single
Displacement 1.218 cu in (19.96 cc)
Engine (Only) Weight 1.305lbs (592g)
Power Type Glow
Muffler Type 2-piece aluminum
Muffler Weight 7.07 oz (219.2 g) w/90 deg adapter installed, 7.9 oz (245 g) w/extension installed
Oil Type & Content At least 18% synthetic lubricant
Plug Type O.S. #8
Product Height 4.3" (109.2mm) bottom of crankcase to top of cylinder head
Product Length 3.9" (100.2mm) from back plate to front of drive hub
Product Width 2.6" (67mm) at mounting tabs
Prop Range 15 x 10-12 or 16x8-10
RPM Range 1,800 - 9,500 RPM
Stroke 1.083" (27.5mm)

Shipping
$7 Flat Rate Shipping for all small Trackpacks (Rural $9)

$12.50 For Dangerous Goods *Note this includes Fuel and Paint

$15 for all North Island Box Frieght and Kits / $25 for South Island Box Freight and Kits *PLEASE NOTE: Some Items are oversize and incur additional freight.

Free Instore Pickup by Arrangement

Saturday Delivery
Unfortunately Saturday delivery is no longer available at RC Hobbies.

Delivery
Once RC Hobbies has confirmed acceptance of the buyer's order, we will endeavor to dispatch the buyer's order within 1-3 Business days unless a different time frame is specified in relation to a particular product. If we are unable to dispatch the buyer's order within the time frame specified by RC Hobbies we will endeavor to contact the buyer and advise the buyer of the expected dispatch date.

In stock items are generally dispatched on the same day you place your order, unless a different time frame is specified in relation to a particular product and provided the order was placed before our daily cut off time which is usually around 1PM.

We use Courier Post and Post Haste for New Zealand orders. Deliveries are usually overnight, but please allow an extra day for big parcels to reach the South Island and for rural deliveries.

We use Courier Post for orders that can fit into overnight courier bags and Post Haste for larger parcels.

Tracking emails will be sent out once parcels have been collected.

The buyer may specify delivery instructions for an order (for example, the buyer may authorise the delivery agent to leave the products in a specified location if the buyer will not be at the delivery address). RC Hobbies will not be responsible for any order that is delivered in accordance with the buyer’s delivery instructions.


Delivery to PO Boxes
RC Hobbies can send goods to PO Boxes, except for large freight boxes.

International Delivery.
We're based in New Zealand but we deliver all round the world. Please contact us for a shipping quote or we will send you a quote after your order has been placed.

sales@rchobbies.co.nz

Returns Policy

The item I received is not the item I ordered

Provided the item is unopened and in mint condition we’ll replace the item. To receive your replacement you must return the original item to. You will be provided with a no-cost return addressed courier satchel (or similar) and we will process your replacement within 1–3 days of receiving your item.

The item I ordered arrived faulty.

Please arrange with RC Hobbies to return the item for testing. If we confirm that the item was damaged before leaving RC Hobbies, or was faulty out of the box, your item will be repaired or if it cannot be repaired then it will be replaced by RC Hobbies Ltd free of charge. If the goods are faulty we will meet our obligations under the Consumers Guarantees Act to provide a remedy.

The item I ordered did not arrive

If your item did not arrive the first thing to do is request a “track and trace” on your item from the Courier Post or Fastway tracking emails we send out.

Alternatively you can call Courier Post on 0800 268 743 or Post Haste on 09 444 2950

If the “track and trace” on your order indicates that it has been delivered, but you’re unable to find it or it hasn’t been delivered within the timeframe we will start an investigation with Courier Post & Post Haste on your behalf.

Regrettably, neither RC Hobbies nor Courier Post & Fastway are able to refund or replace items that have been lost, damaged or stolen after being delivered to your property. If you are concerned about leaving your items unattended we recommend using “Signature Required” option which is our default option unless advise by the Buyer to use the “No Signature Required” option.

I've changed my mind and no longer want the item I ordered

Change of mind returns can be processed as long as it has been agreed by RC Hobbies and the item has been returned within 7 days of dispatch and is unopened and in mint condition. The shipping for the return will also be at the cost of the buyer. Once we have the item in hand we will assess the item and if everything checks out OK you will receive a Store Credit or refund less the restock fee and freight charges.

Restock fee

All goods ordered in error by the Customer or goods the Customer wishes to return are subject to a restock fee. The fee is 15% of the goods sales value. This applies if you change your mind, ordered it in error, unwanted Gift or just did not like it or did not suit you, so please choose carefully and read the descriptions in the listings as some products also require additional items to complete.

Description

Perfect for 3D, precision and sport flying!

Admit it: if you could ratchet up horsepower without having to increase the mounting space, you’d probably jump at the chance. Well, here it is. The 120AX boasts 25% more displacement than a .91 (think of the bigger props you can swing!) — and bolts into the same space, with almost no extra weight. And that’s not all. The 120AX’s innovative Power Box muffler offers mounting versatility that translates into value. Plus, the angled heat sink head not only looks sharp, it adds more surface area, for better cooling. Here’s a golden opportunity to boost your airplane's flying capabilities — with almost no modification!

Key Features:

  • Ideal for 3D, Precision and Sport flying
  • Mounting Application: Mounts in same space as the .91FX (actual mounting dimensions vary slightly
  • Internal Construction: Steel piston ring and liner, aluminum piston
  • Muffler: E-5020 "Power Box" with extension and 90° adapters
  • Carburetor: 70D with rearward angled needle valve for safety
  • Glowplug: O.S. #8 supplied with engine, A5 (OSMG2693) will also work
  • Warranty: Two-year limited

What's In The Box?

  • O.S. Max Two-Stroke 1.20AX Ringed Engine with E-5020 Power Box Muffler
  • #8 glow plug
  • Mmuffler adapter
  • Prop washer and lock nut
  • Nneedle valve extension cable
  • Instruction manual and decal sheet
  • Ttwo muffler screws
  • Two muffler extension bolts
  • Two long muffler bolts.

Required for Operation (Not Included)

  • Fuel: Two-Stroke with 18% lubricant and 5-20% nitromethane
  • Propeller: 15x10-12 or 16x8-10
  • Field Equipment: Glow starter, fuel filter, fuel pump, fuel tubing.

Technical Specifications:

Manufacturer # 19210
Bore 1.197" (30 mm)
Carb Type Rotary
Crankshaft Threads UNF5/16-24
Crankshaft Type Threaded
Cylinders Single
Displacement 1.218 cu in (19.96 cc)
Engine (Only) Weight 1.305lbs (592g)
Power Type Glow
Muffler Type 2-piece aluminum
Muffler Weight 7.07 oz (219.2 g) w/90 deg adapter installed, 7.9 oz (245 g) w/extension installed
Oil Type & Content At least 18% synthetic lubricant
Plug Type O.S. #8
Product Height 4.3" (109.2mm) bottom of crankcase to top of cylinder head
Product Length 3.9" (100.2mm) from back plate to front of drive hub
Product Width 2.6" (67mm) at mounting tabs
Prop Range 15 x 10-12 or 16x8-10
RPM Range 1,800 - 9,500 RPM
Stroke 1.083" (27.5mm)
