The legend returns…

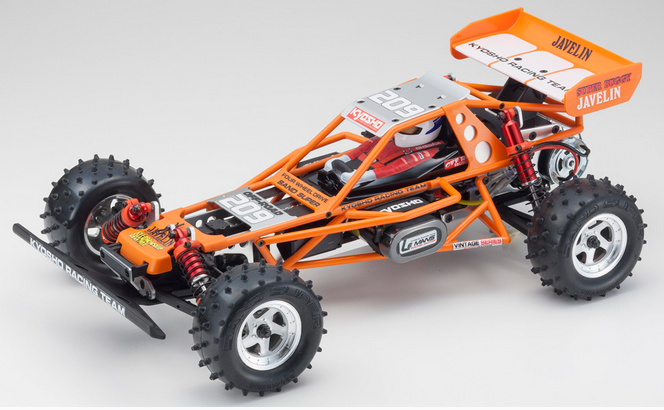

Javelin. A machine that redefines what it means to be the best.
After more than 30 years since the original release in 1986, this electric off-road competition model has been recreated as the sixth model in the Kyosho Vintage Series.
Incorporating a resin pipe-frame body resembling the innovative aluminum pipe frame body of the 1/8 scale Land Jump engine powered buggy, the Javelin features the proven performance of double wishbone suspension with a narrow backbone-style skid frame that delivers ideal geometry for wide-angled steering. This combines with the Javelin's superior sealed compartment 4WD chain-drive system to produce excellent performance and durability. At the heart of the external features that faithfully represent the image of the Javelin of 30 years ago, this Vintage Series version is packed with modern racing performance potential and is compatible with modern power sources.
At the heart of the drive system is a counter gear equipped with slipper function and a final gear case made from metal to strengthen its load bearing capacity. The adoption of precision 48-pitch gear modules reduces power loss and the optimal combination of nylon and sintered alloy delivers both improved drive efficiency and reduced noise. In addition to chain drive, the drive system can also be changed to a belt system, which was optional in the original model. Also, the large diameter aluminum shocks, recreated in the original design, combine with long stroke suspension to deliver increased performance potential.
Key Features:
- Each part has been upgraded to correspond with modern power sources while retaining Javelin's unique original design.
- Simple yet high rigidity aluminum backbone type chassis.
- Two types of drive system can be selected. The 4WD chain system with sealed compartment that took the world by storm, or the 4WD belt system that was later released as an option.
- FRP radio plate is suitable for ESC's of any brand.
- One-piece wheels replicate the original stylish design while delivering a reduction in weight.
- Velcro type battery stay (including battery straps printed with Kyosho logo) is compatible with various batteries and allows easy installation and removal.
What's In The Box?
- Javelin Assembly Kit (gear box, oil shock are preassembled)
- Body frame
- Decals
- L-shape hexagonal wrench
- Cross wrench
- Shock wrench
- Shock oil
- Grease
Required to Complete (Not Included)
- 2 Channel R/C System
- Electronic Speed Controller
- Steering Servo
- 540 Motor (20T – 27T recommended)
- 6-Cell 7.2V NiMH Battery or 2S 7.4V LiPo Battery
- Compatible Battery Charger
- Paint for body
- Tools (maybe required: 1.5 / 2.0 / 3.0 hexagonal wrench driver, needle nose pliers, wire cutters, box cutter, Philips screwdriver for replacing servo horn)
Nylon pipe frame and aluminum rooftop form a high strength roll cage body structure. Includes large bumper similar to the original design as well as a mini bumper suitable for racing.

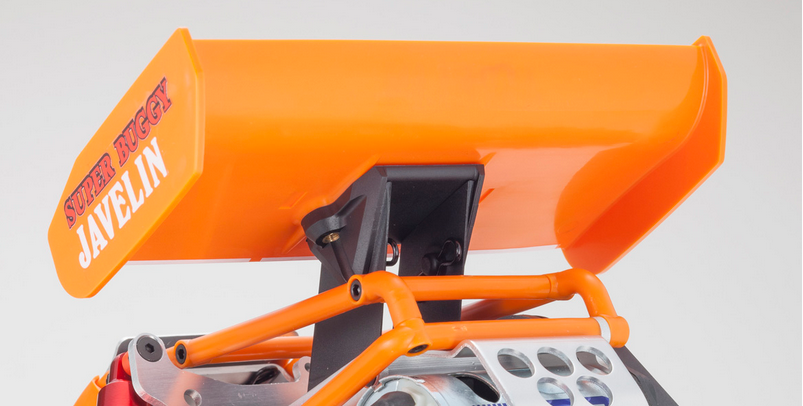

New large size wing and wing stay is made from reinforced nylon material. The original Javelin wing was mounted on the roll cage directly. The new wing stay is now separate from the roll cage adding more durability and the wing is fixed with body clips for easier maintenance. The wing mounting position is the same as the Scorpion series allowing installation of the smaller wing used for the Scorpion onto the new Javelin.

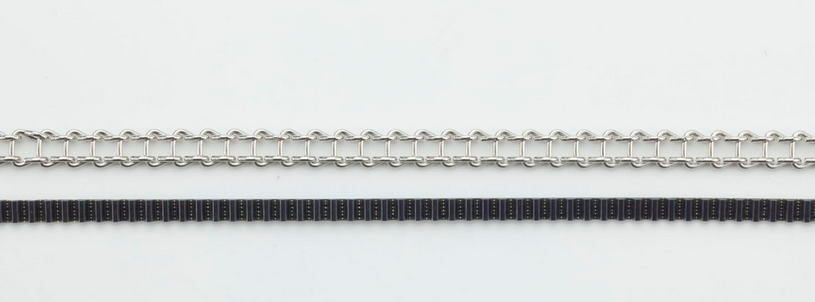

Equipped with choice of two drive systems. The original 1986 version used a chain drive with an optional belt drive sold separately. Both are included as standard in this Vintage Series version.

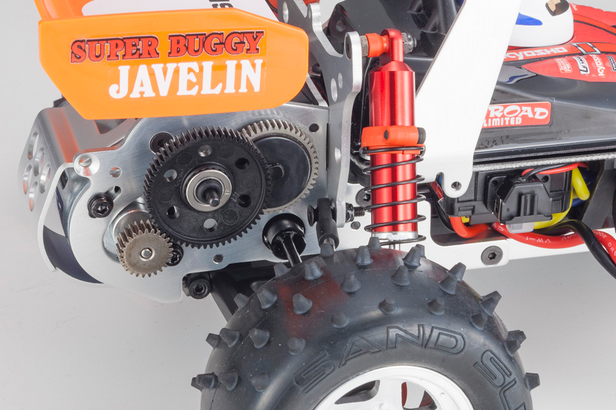

The gearbox is equipped with a slipper clutch to protect the drive system from sudden load changes such as jump landings. It can respond to various road conditions with simple adjustments.
Technical Specifications:
■Length 403mm
■Width 240mm
■Height 130mm
■Wheelbase 260mm
■Front Tread 204mm
■Rear Tread 204mm
■Weight 1,700g (approx.)
■Tires (F & R) φ86×40mm
■Motor 540 Class size（sold separately）
■Gear Ratio 9.24：1
Shipping
$13.50 Flat Rate - Nationwide!
Saturday Delivery
Unfortunately Saturday delivery is no longer available at RC Hobbies.
Delivery
Once RC Hobbies has confirmed acceptance of the buyer's order, we will endeavor to dispatch the buyer's order within
1-3 Business days unless a different time frame is specified in relation to a particular product. If we are unable to dispatch
the buyer's order within the time frame specified by RC Hobbies we will endeavor to contact the buyer and advise
the buyer of the expected dispatch date.
In stock items are generally dispatched on the same day you place your order, unless a different time frame is specified
in relation to a particular product and provided the order was placed before our daily cut off time which is usually
around 1PM.
We use NZ Post, Aramex, and Post Haste for New Zealand orders. Deliveries are usually 2 working days, but please allow an extra
day for big parcels to reach the South Island and for rural deliveries.
We use NZ Post for orders that can fit into overnight courier bags and Post Haste for larger parcels.
Tracking emails will be sent out once parcels have been collected.
The buyer may specify delivery instructions for an order (for example, the buyer may authorise the delivery agent to
leave the products in a specified location if the buyer will not be at the delivery address). RC Hobbies will
not be responsible for any order that is delivered in accordance with the buyer’s delivery instructions.
Delivery to PO Boxes
RC Hobbies can send goods to PO Boxes, except for large freight boxes.
International Delivery.
We're based in New Zealand but we deliver all round the world. Please use our shipping estimator at checkoutfor a shipping quote or contact us and will send you
a quote.
sales@rchobbies.co.nz
Returns Policy
The item I received is not the item I ordered
Provided the item is unopened and in mint condition we’ll replace the item. To receive your replacement you must return the
original item to. You will be provided with a no-cost return addressed courier satchel (or similar)
and we will process your replacement within 1–3 days of receiving your item.
The item I ordered arrived faulty.
Please arrange with RC Hobbies to return the item for testing. If we confirm that the item was damaged before leaving
RC Hobbies, or was faulty out of the box, your item will be repaired or if it cannot be repaired then it will be replaced
by RC Hobbies Ltd free of charge. If the goods are faulty we will meet our obligations under the Consumers Guarantees
Act to provide a remedy.
The item I ordered did not arrive
If your item did not arrive the first thing to do is request a “track and trace” on your item from the Courier Post or Fastway
tracking emails we send out.
Alternatively you can call Courier Post on
0800 268 743 or Post Haste on
09 444 2950
If the “track and trace” on your order indicates that it has been delivered, but you’re unable to find it or it hasn’t been
delivered within the timeframe we will start an investigation with Courier Post & Post Haste on your behalf.
Regrettably, neither RC Hobbies nor Courier Post & Fastway are able to refund or replace items that have been lost, damaged
or stolen after being delivered to your property. If you are concerned about leaving your items unattended we recommend
using “Signature Required” option which is our default option unless advise by the Buyer to use the “No Signature Required”
option.
I've changed my mind and no longer want the item I ordered
Change of mind returns can be processed as long as it has been agreed by RC Hobbies and the item has been returned
within 7 days of dispatch and is unopened and in mint condition. The shipping for the return will also be at the cost
of the buyer. Once we have the item in hand we will assess the item and if everything checks out OK you will receive
a Store Credit or refund less the restock fee and freight charges.
Restock fee
All goods ordered in error by the Customer or goods the Customer wishes to return are subject to a restock fee. The fee is
15% of the goods sales value. This applies if you change your mind, ordered it in error, unwanted Gift or just did not
like it or did not suit you, so please choose carefully and read the descriptions in the listings as some products also
require additional items to complete.
Description
The legend returns…
Javelin. A machine that redefines what it means to be the best.
After more than 30 years since the original release in 1986, this electric off-road competition model has been recreated as the sixth model in the Kyosho Vintage Series.
Incorporating a resin pipe-frame body resembling the innovative aluminum pipe frame body of the 1/8 scale Land Jump engine powered buggy, the Javelin features the proven performance of double wishbone suspension with a narrow backbone-style skid frame that delivers ideal geometry for wide-angled steering. This combines with the Javelin's superior sealed compartment 4WD chain-drive system to produce excellent performance and durability. At the heart of the external features that faithfully represent the image of the Javelin of 30 years ago, this Vintage Series version is packed with modern racing performance potential and is compatible with modern power sources.
At the heart of the drive system is a counter gear equipped with slipper function and a final gear case made from metal to strengthen its load bearing capacity. The adoption of precision 48-pitch gear modules reduces power loss and the optimal combination of nylon and sintered alloy delivers both improved drive efficiency and reduced noise. In addition to chain drive, the drive system can also be changed to a belt system, which was optional in the original model. Also, the large diameter aluminum shocks, recreated in the original design, combine with long stroke suspension to deliver increased performance potential.
Key Features:
- Each part has been upgraded to correspond with modern power sources while retaining Javelin's unique original design.
- Simple yet high rigidity aluminum backbone type chassis.
- Two types of drive system can be selected. The 4WD chain system with sealed compartment that took the world by storm, or the 4WD belt system that was later released as an option.
- FRP radio plate is suitable for ESC's of any brand.
- One-piece wheels replicate the original stylish design while delivering a reduction in weight.
- Velcro type battery stay (including battery straps printed with Kyosho logo) is compatible with various batteries and allows easy installation and removal.
What's In The Box?
- Javelin Assembly Kit (gear box, oil shock are preassembled)
- Body frame
- Decals
- L-shape hexagonal wrench
- Cross wrench
- Shock wrench
- Shock oil
- Grease
Required to Complete (Not Included)
- 2 Channel R/C System
- Electronic Speed Controller
- Steering Servo
- 540 Motor (20T – 27T recommended)
- 6-Cell 7.2V NiMH Battery or 2S 7.4V LiPo Battery
- Compatible Battery Charger
- Paint for body
- Tools (maybe required: 1.5 / 2.0 / 3.0 hexagonal wrench driver, needle nose pliers, wire cutters, box cutter, Philips screwdriver for replacing servo horn)
Nylon pipe frame and aluminum rooftop form a high strength roll cage body structure. Includes large bumper similar to the original design as well as a mini bumper suitable for racing.
New large size wing and wing stay is made from reinforced nylon material. The original Javelin wing was mounted on the roll cage directly. The new wing stay is now separate from the roll cage adding more durability and the wing is fixed with body clips for easier maintenance. The wing mounting position is the same as the Scorpion series allowing installation of the smaller wing used for the Scorpion onto the new Javelin.
Equipped with choice of two drive systems. The original 1986 version used a chain drive with an optional belt drive sold separately. Both are included as standard in this Vintage Series version.
The gearbox is equipped with a slipper clutch to protect the drive system from sudden load changes such as jump landings. It can respond to various road conditions with simple adjustments.
Technical Specifications:
■Length 403mm
■Width 240mm
■Height 130mm
■Wheelbase 260mm
■Front Tread 204mm
■Rear Tread 204mm
■Weight 1,700g (approx.)
■Tires (F & R) φ86×40mm
■Motor 540 Class size（sold separately）
■Gear Ratio 9.24：1
