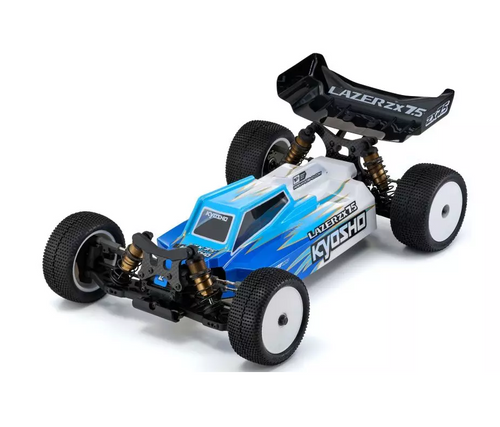

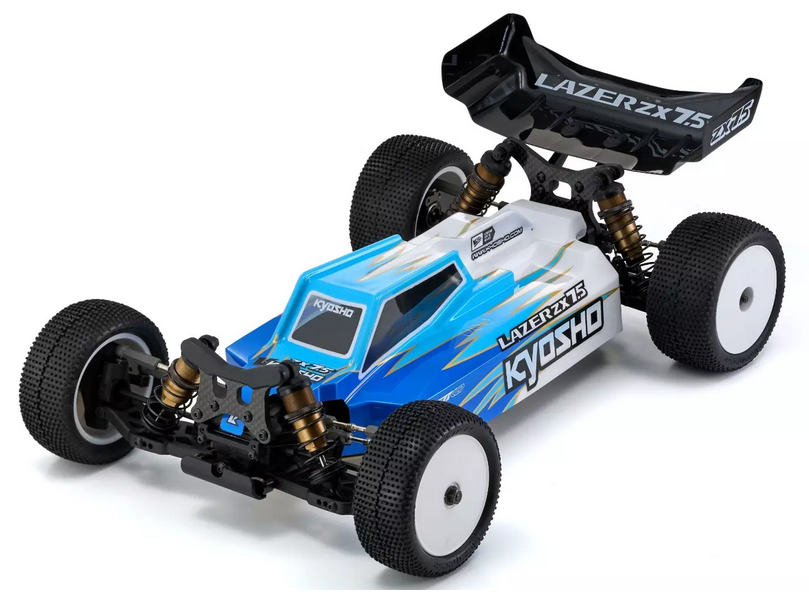

Kyosho 1/10 Lazer ZX7.5 4WD EP Racing Buggy Kit
- SKU:
- KYO 34331B
- Brand:
- Kyosho
Cutting edge of competitive racing just got sharper, updated 4WD buggy specs!
The 1/10 scale EP (electric) buggy, particularly high-traction 4WD models, offers an ideal entry point into R/C cars while also representing a long-established racing category. From World Championships to elite competitions worldwide, this class delivers intense, high-performance racing. Kyosho’s latest weapon for this competitive arena is the Lazer ZX7.5. Carrying the legendary “Lazer” name synonymous with Kyosho’s 4WD racing buggies, it builds on the proven ZX7 platform with comprehensive refinements and new components, delivering performance capable of competing at the highest level. A key focus of the ZX7.5 is keeping pace with the ever-increasing speeds of modern racing. A newly designed main chassis combines optimized center of gravity and weight distribution to enhance overall performance. Components from the Ultima RB7.5 2WD buggy have also been strategically adopted to further elevate its capabilities. Beyond pure speed, the ZX7.5 also improves durability, expands setup options, and enhances maintenance efficiency. Modern buggy racing spans a wide range of surfaces from ultra-high-grip carpet and artificial turf to slippery dirt tracks, and the ZX7.5 is engineered to handle them all. Whether you’re aiming for competitive racing or stepping up from mid-range models like the Lazer SB Dirt Cross 4WD, you can rely on the Lazer ZX7.5 as a racing partner to perform at every level.
Key Features:
- Advanced Chassis Design & Optimized Weight Distribution
- Race-Tuned Suspension & Adjustability
- High-Efficiency Drivetrain & Competition Features
- Shaft-Driven 4WD System
- A7075-T6 Aluminum Main Chassis
- Optimized Front-To-Rear Weight Distribution
- Double Wishbone Suspension Design
- Big Bore Aluminum Oil Shocks
- Carbon Fiber Shock Towers
- Adjustable Caster Angle Settings
- Floating Servo Mount System
- Sliding Motor Mount Design
- Geared Center Differential
- Lazer ZX-7.5 4WD Buggy Kit
- Clear Polycarbonate Body
- Rear Wing
- Aluminum Oil Shocks
- Carbon Shock Towers
- Front Upper Plates (Type A And Type X)
- Battery Holder Components
- Assembly Hardware
- Instruction Manual
Required for Operation (Not Included)
- 2-Channel Transmitter & Receiver
- Servo
- 540 Motor
- ESC
- 2S LiPo Shorty Battery
- Compatible Battery Charger
- Paint for Body
- Assembly Tools
Thickness of the high-rigidity A7075-T6 aluminum main chassis has been reduced from 2.5mm to 2.0mm for lighter weight. Increased chassis flex also contributes to improved grip.

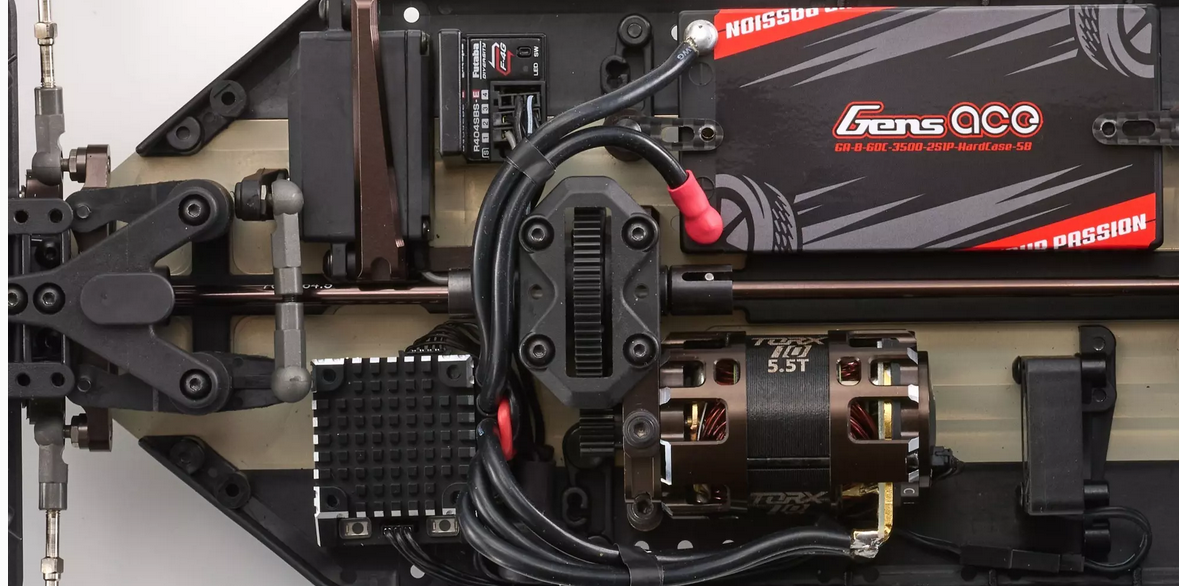

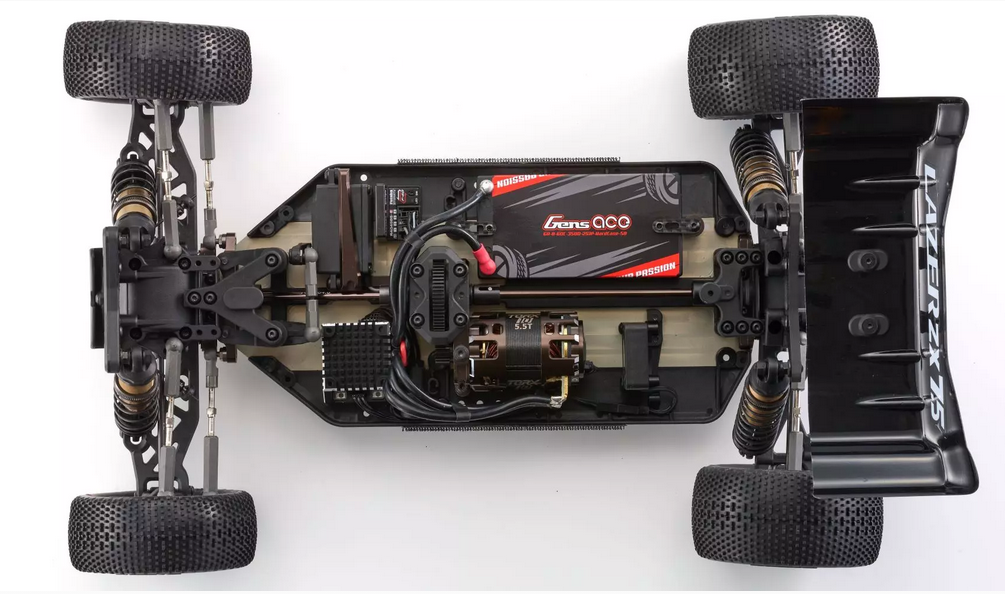

Centre bulkhead (gearbox) is positioned 7mm further forward compared to the Lazer ZX7, rebalancing front-to-rear weight distribution for improved traction and stability. It is equipped with a geared center differential, with an optional slipper clutch conversion available.

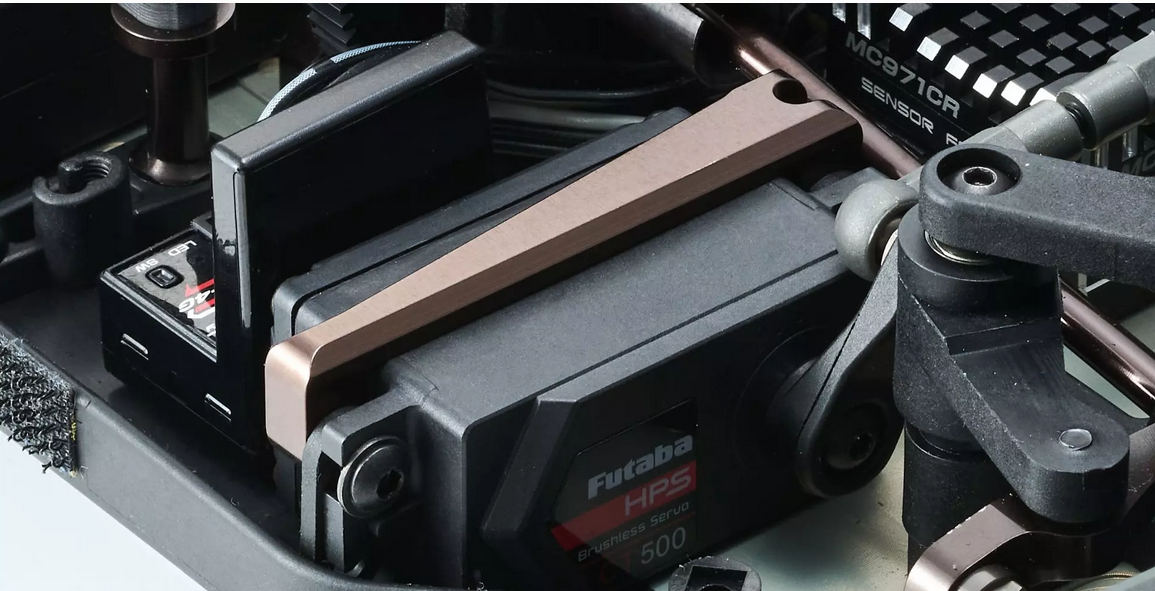

Steering servo stay changed to a one-piece aluminum design. Floating servo mount layout minimizes the effect on chassis flex for smoother steering characteristics.

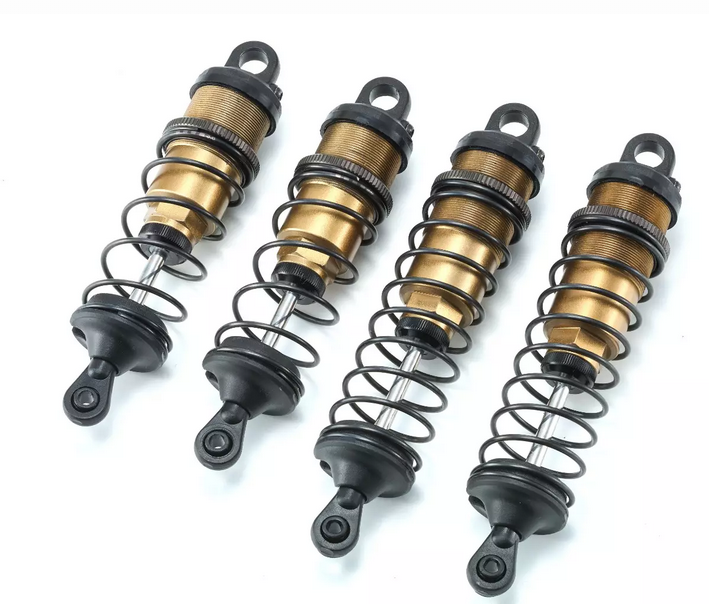

Includes new aluminum big bore oil shocks with φ13mm pistons as standard. Resin damper caps improve speed over surface gaps and recovery from changes in posture for improved driving stability.

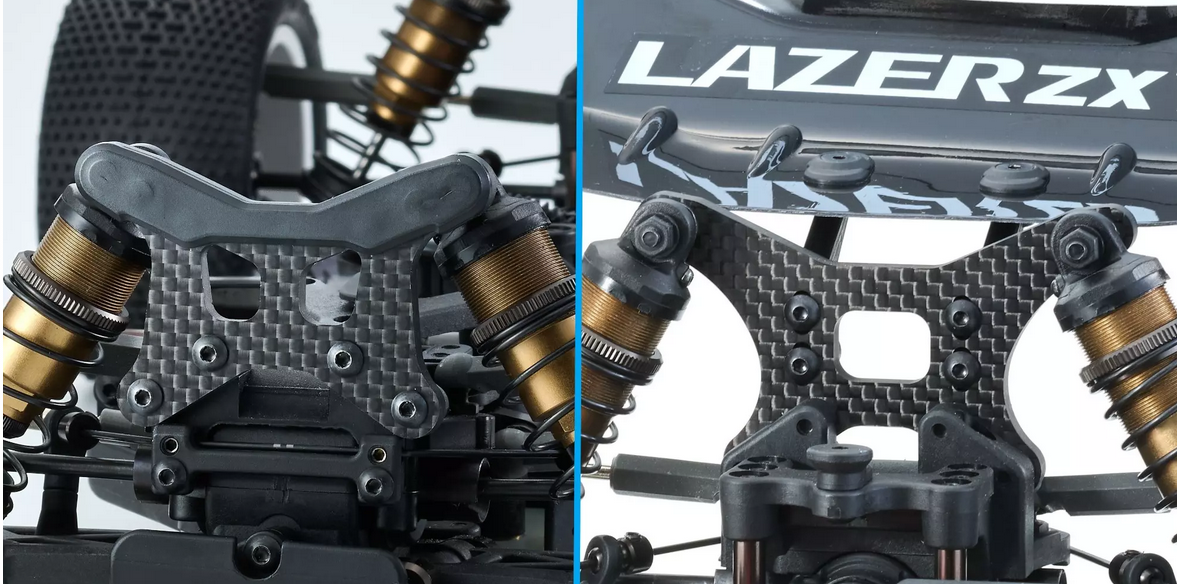

Newly designed 4mm thick carbon shock towers combine lightweight construction with high rigidity. Contributing to a lower center of gravity, the front tower also features a protective resin cover to prevent damage during rollovers.

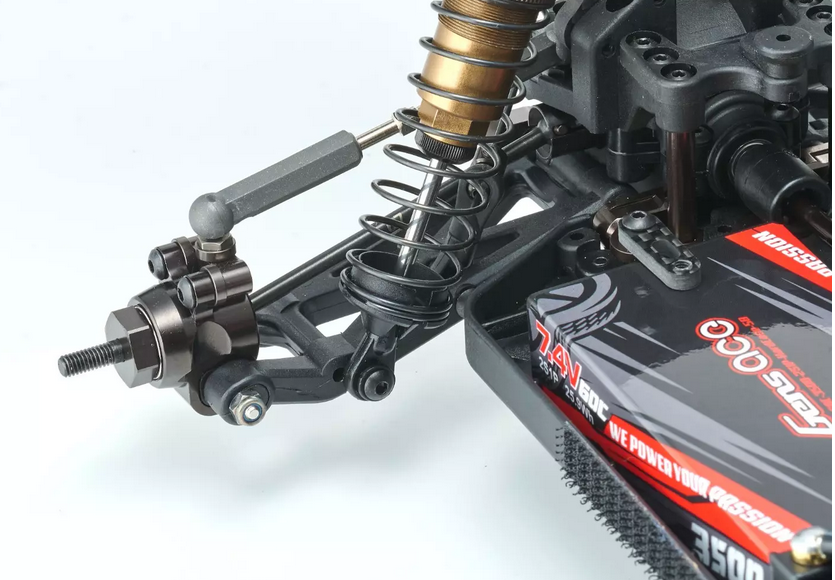

Caster angle can be adjusted to 7°, 10°, or 13° by changing resin bushings. Enables quick setup changes to suit driver preference and track conditions.

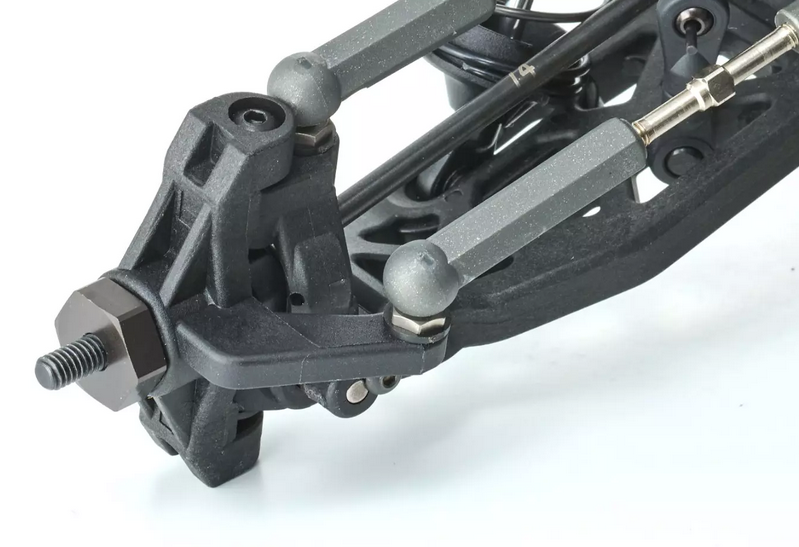

New design rear hub carrier separates the upper arm mounting point to allow adjustment of upper arm length, mounting height, and roll center. Outer suspension pin height can also be changed with resin bushings. High-rigidity aluminum construction.

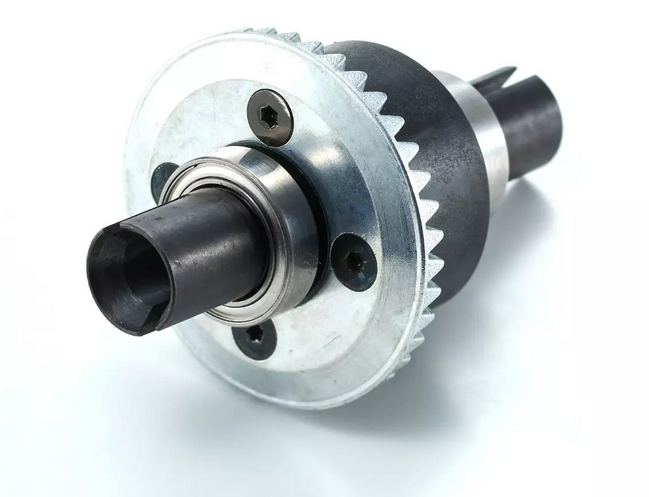

Sintered steel internal gears deliver higher durability in the front and rear differentials. Revised gear ratios enhance stability. Also compatible with optional ball differential units.

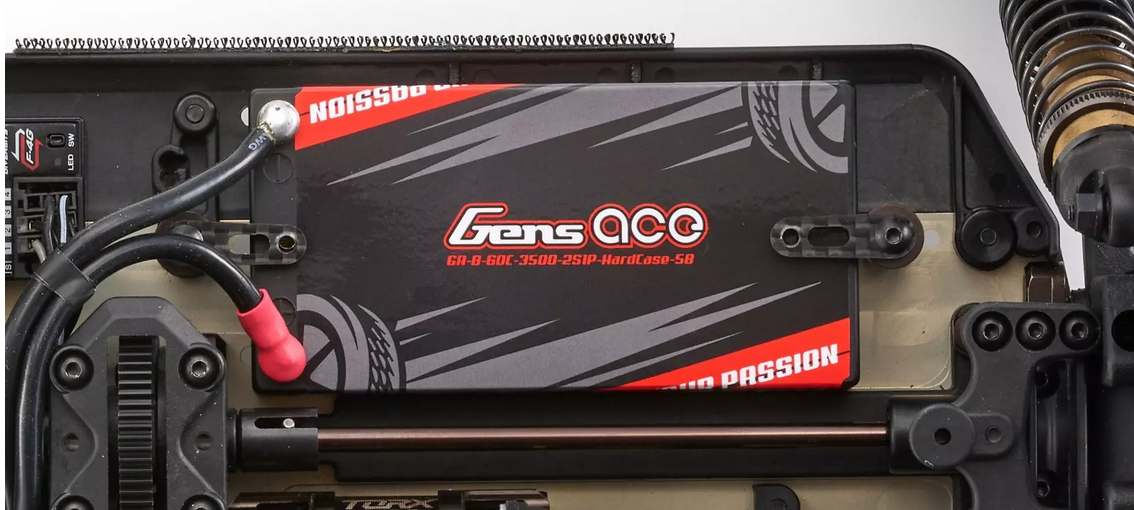

Designed exclusively for shorty LiPo batteries. The compact carbon battery holder secures the pack without fully restricting it, preserving chassis flex characteristics.
High-downforce forward-cabin body design improves aerodynamic performance. The rear wing is shared with the Ultima RB7.5 2WD model, delivering stable downforce and increased grip.

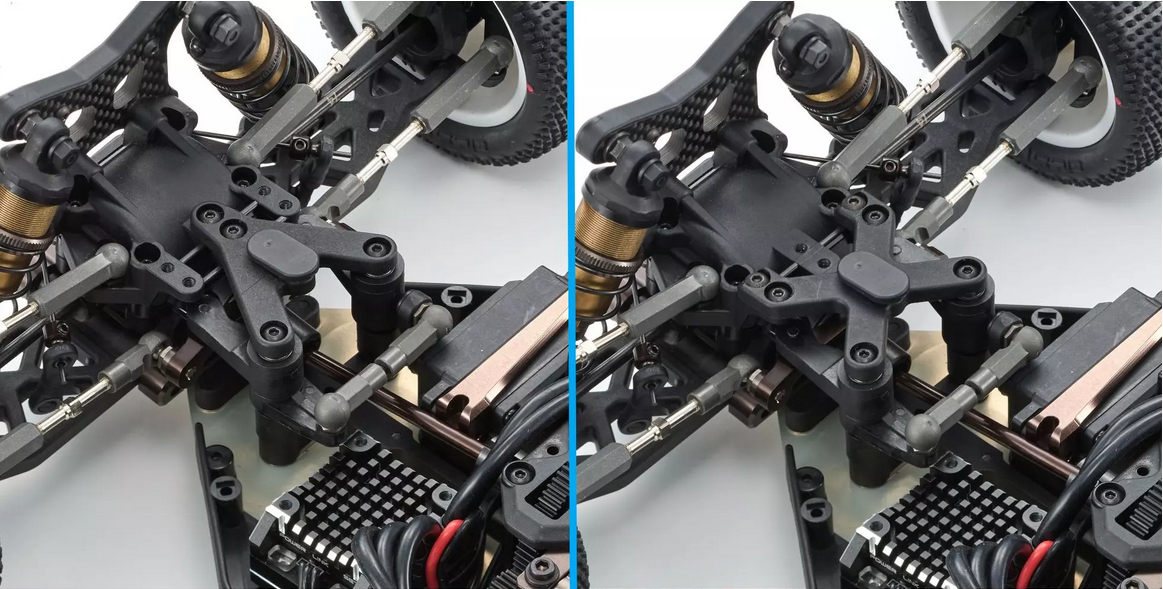

Front Upper Plates (2 Types)
・Type A: Promotes front-end roll with sharper steering response.
・Type X: Increased front rigidity for improved stability.
Technical Specifications:
Length 385mm
Width 248mm
Height 145mm
Wheelbase 278mm
Tread (F/R) 210mm／200mm
Tire (sold separately)
Weight 1,650g (approx.)
Motor (sold separately
