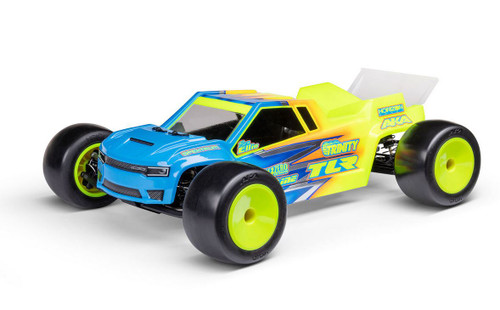

TLR 1/10 22X-T 2WD Stadium Truck Race Kit
- SKU:
- TLR-1053
- Brand:
- Team Losi Racing
TLR takes the lessons of its revolutionary 22 series and launches the next era of electric racing dominance with the 22X-T Stadium Truck. Based on the 22X buggy, it offers more adjustability for higher speed on today’s high-grip dirt and clay surfaces.
Key Features:
- Multiple steering offsets available — get the feel you need on any surface
- New laydown gearbox with easy-access differential and idler gear
- Increased chassis length for consistency with today’s high-grip tracks
- Larger 13mm big-bore shocks for optimal handling and cornering
- Lower shock towers for a lower CG
- Proper stiffness composites included for more grip
- Adjustable height body mounts
- Wide king pin spindle and carrier for less scrub radius and more consistent steering feel
- All new front and rear arms
- Buggy length shocks and lower towers for low CG
- Proven ball differential with new differential gear for smoothness and durability
- Shares many parts with TLR 22X buggies

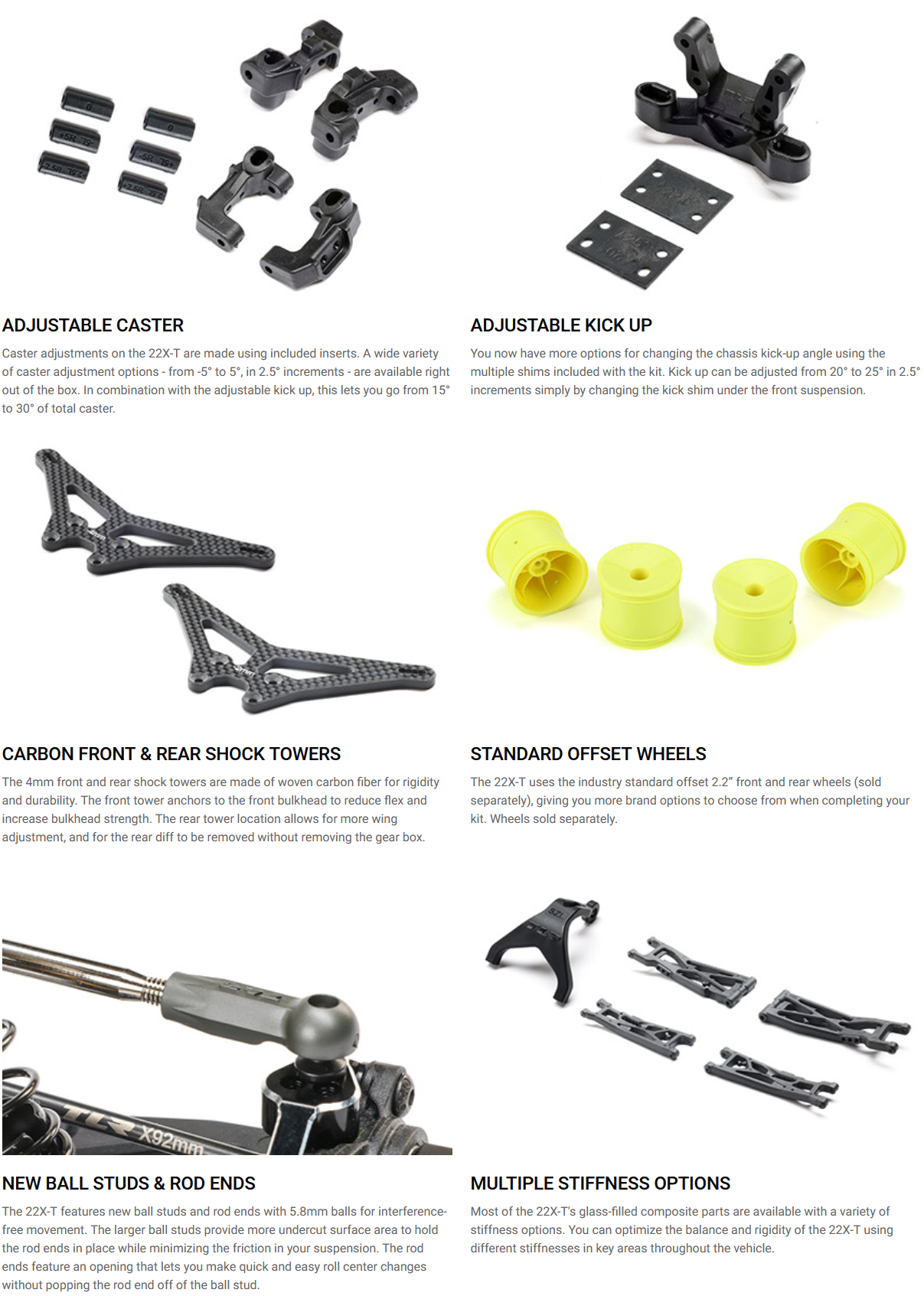

- Adjustable caster from -5° to 5° in 2.5° increments
- Hard-anodized 2mm machined 7075-T6 aluminum chassis
- Adjustable rear pivots for anti-squat and rear toe refinement
- Larger 13mm shock springs for proper support
- Rigid 4mm woven carbon fiber front and rear shock towers
- Industry standard offset wheels
- Refined steering geometry for a consistent feel around the track
- New ball studs and rod ends with 5.8mm balls for interference-free movement

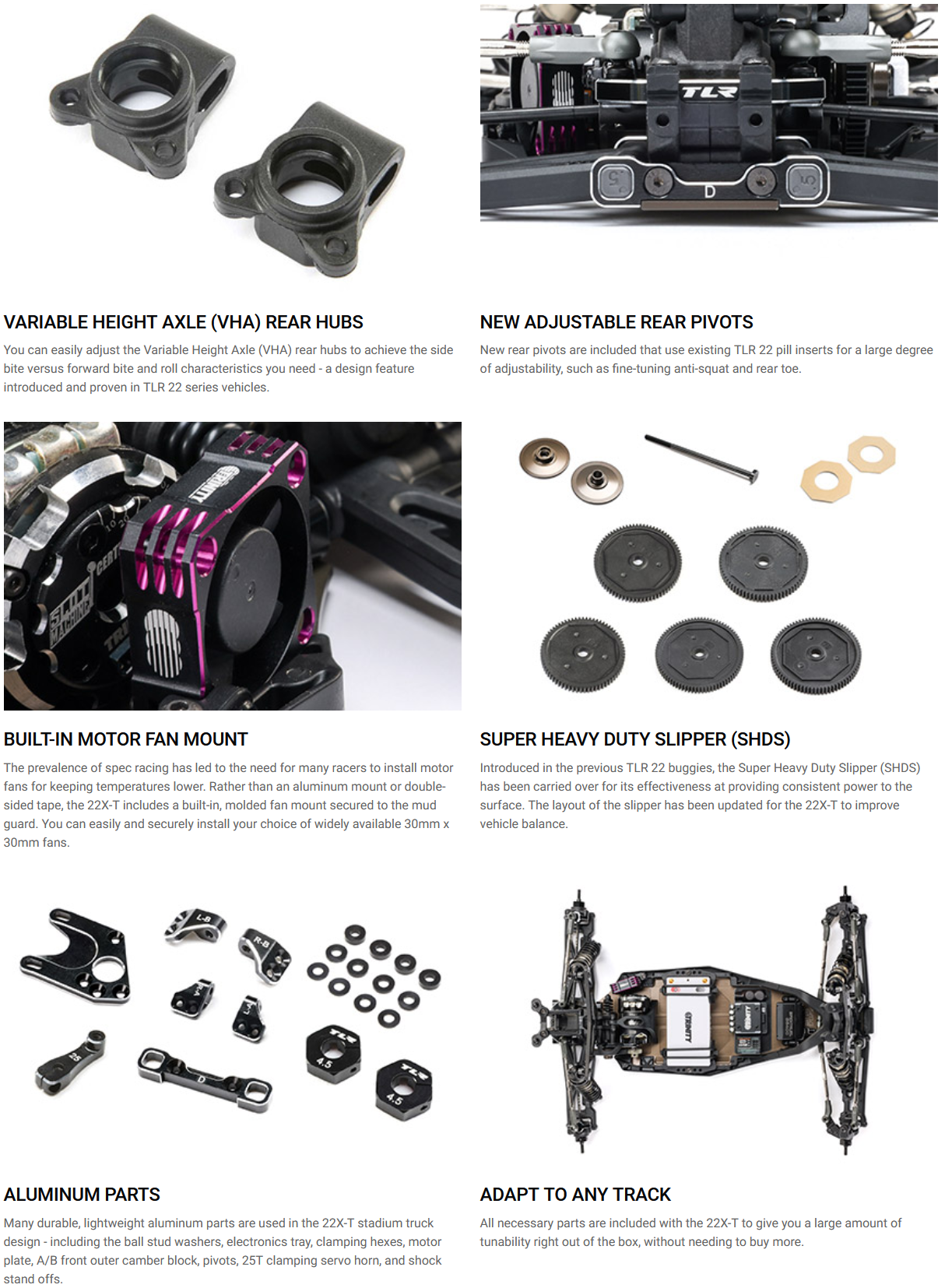

- Proven Variable Height Axle (VHA) rear hubs with easy bite and roll adjustment
- Glass-filled composite parts in multiple stiffnesses available for tuning rigidity
- Adjustable kick up from 20° to 25° in 2.5° increments
- Super Heavy Duty Slipper (SHDS) with new layout for improved vehicle balance
- Maximum tunability out of the box - no need to buy extra parts
- Adjustable battery mount
- Built-in motor fan mount for 30mm x 30mm fans
- Optimized shock tower locations
- Many aluminum parts - chassis, motor plate, electronics tray, shock stand offs, pivots, ball stud washers, clamping hexes, front outer camber block, 25T clamping servo horn
What's In The Box?
- Team Losi Racing 22X-T 1/10 Scale 2WD Stadium Truck Race Kit
- Product Manual
Required for Operation (Not Included)
- ESC
- 540 Size Motor
- 2S LiPo Shorty Battery
- LiPo Battery Charger
- Receiver
- Transmitter
- Servo
- 48 Pitch Pinion Gear
- 30 x 30mm Motor Fan (Optional)
- Body
- 2.2” Truck Wheels
- 2.2” Truck Tires
- Polycarbonate Paint
Overview
When Team Losi Racing unveiled the revolutionary 22 buggy in 2010, it jump-started the entire electric racing scene. This new 2WD platform was just the first in a series of winning TLR 22 vehicles that would all deliver top-level performance.
Now, a new era of domination begins with the 1/10 scale 22X-T 2WD Stadium Truck Kit. The TLR design team started with lessons learned from the World Championship-winning 22 - and from years of further platform development, all the way to the recently released 22X buggies. They emerged with a brand new stadium truck that's easier to maintain and comes optimized for dirt and clay tracks, with a ton of adjustability that makes it easier to drive faster on today's high-grip surfaces.
If you're ready for the podium, the 22X-T is equipped to take you there. Key improvements include a hard-anodized 2mm 7075-T6 aluminum chassis that's lengthened and optimized for today's higher grip tracks, plus adjustable body mounts and all-new front and rear arms. The buggy-length shocks and lower towers produce a lower CG, while larger, 13mm big-bore shocks with 13mm springs contribute to plush landings and quick cornering.

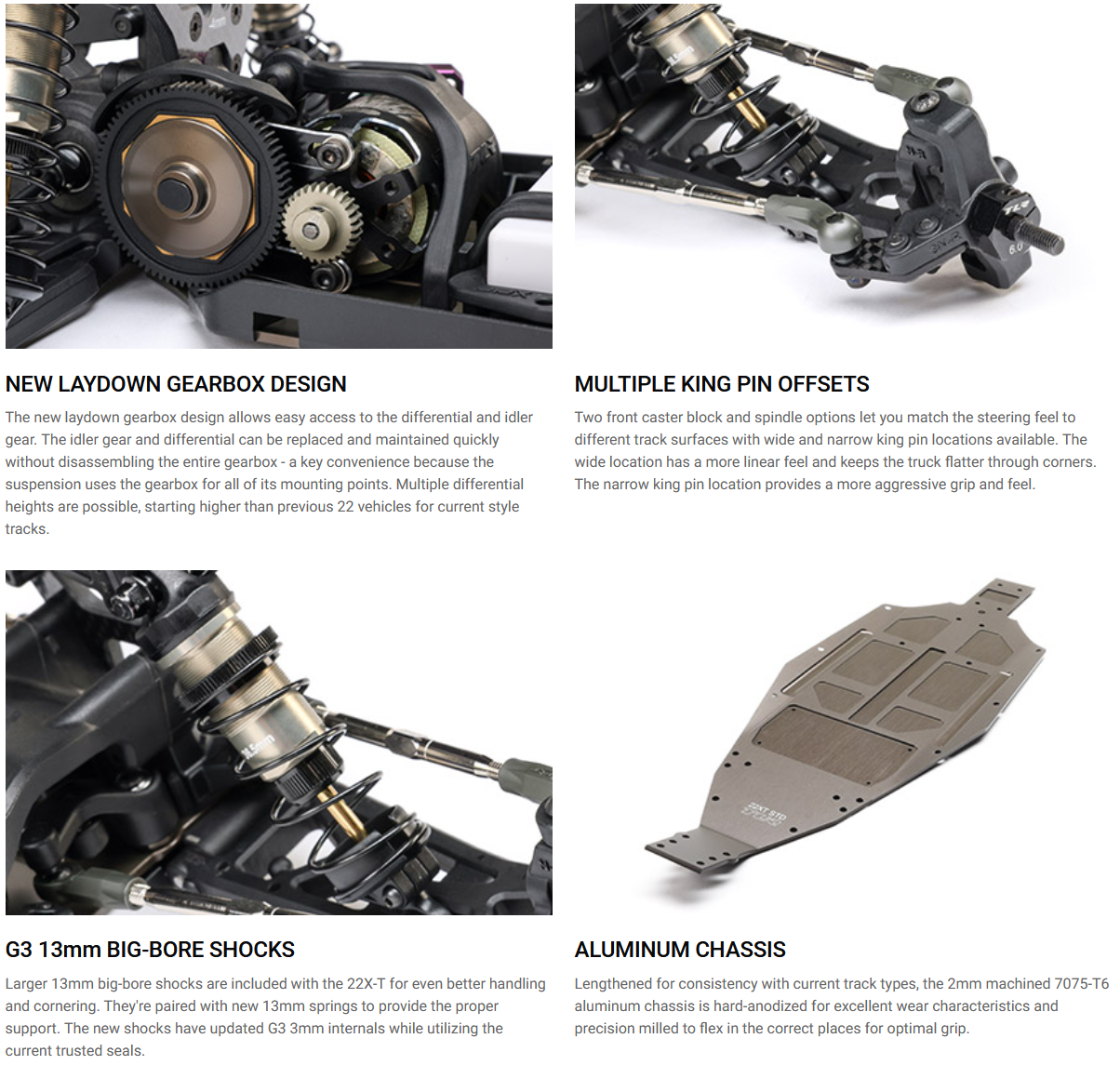

Two front caster block and spindle options let you tune the steering feel to what you want and need on different surfaces; options for wide or narrow king pin locations are available. The wide location provides a more linear feel and keeps the stadium truck flatter through the corners. For a more aggressive steering feel, you can choose the narrow king pin location.
The 22X-T also has a new laydown gearbox that offers easy access to the proven ball differential. You'll be able to maintain the differential and idler gear quickly without disassembling the entire gear box - a big advantage given that the suspension uses the gearbox for all of its mounting positions.
TLR includes many option items with the 22X-T to offer the maximum amount of tunability right out of the box. It also has many parts in common with the 22X DC and 22X AC Race Buggy Kits for easy parts sharing. The demands of 2WD electric racing have changed, as the tracks have changed from traditional loose-grip dirt to high-grip clay, carpet, and turf. With the 22X-T, you can adapt to any track and be fast and successful anywhere.
Technical Specifications:
| Approximate Assembly Time | 3-5 hours |
| Body | Pre-cut |
| Chassis | 7075-T6 Aluminum milled plate 2mm thick |
| Completion Level | Kit |
| Differential | Ball |
| Drivetrain | 2WD |
| Front Track | 12.8" (326mm) |
| Internal Gear Ratio | 2.6:1 |
| LiPo Compatibility | 2S |
| Max Battery Dimensions | 0.98 in x 5.47 in x 1.85 in (25mm x 139mm x 47mm) |
| Pitch | 48-Pitch |
| Power Type | Electric |
| Product Height | 5.2" (132 mm) |
| Product Length | 16.5" (419 mm) |
| Rear Track | 12.7" (323mm) |
| Scale | 1/10 |
| Shock Type | 13mm big-bore shocks |
| Spur Gear | 78 |
| Vehicle Size | Standard |
| Vehicle Type | Stadium Truck |
| Wheel Hex Size | 12mm |
| Wheelbase | 11.3" (287 mm) |
